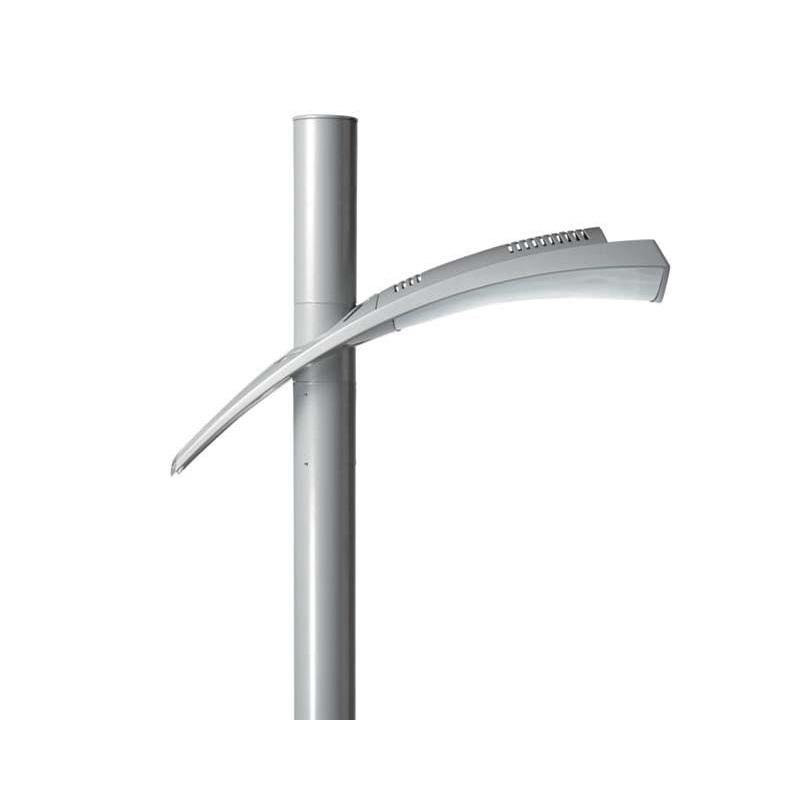

Lumec Lighting Leonis Arm Mount LED (LEN-LED)
Product List
| Product Name | SKU | Watts | Lumens | Kelvin |
|---|---|---|---|---|
| Leonis, 35W, 48 LED, Type II - 107 lm/W | LEN-35W48LED4K-T-2 | 36 | 3887 | 4000 |
| Leonis, 35W, 48 LED, Type III - 102 lm/W | LEN-35W48LED4K-T-3 | 36 | 3715 | 4000 |
| Leonis, 35W, 48 LED, Type IV - 98 lm/W | LEN-35W48LED4K-T-4 | 36 | 3578 | 4000 |
| Leonis, 35W, 48 LED, Type V - 87 lm/W | LEN-35W48LED4K-T-5 | 36 | 3183 | 4000 |
| Leonis, 55W, 48 LED, Type II - 103 lm/W | LEN-55W48LED4K-T-2 | 54 | 5579 | 4000 |
| Leonis, 55W, 48 LED, Type III - 97 lm/W | LEN-55W48LED4K-T-3 | 54 | 5267 | 4000 |
| Leonis, 55W, 48 LED, Type IV - 95 lm/W | LEN-55W48LED4K-T-4 | 54 | 5135 | 4000 |
| Leonis, 55W, 48 LED, Type V - 85 lm/W | LEN-55W48LED4K-T-5 | 54 | 4611 | 4000 |
| Leonis, 70W, 48 LED, Type II - 102 lm/W | LEN-70W48LED4K-T-2 | 70 | 7136 | 4000 |
| Leonis, 70W, 48 LED, Type III - 97 lm/W | LEN-70W48LED4K-T-3 | 70 | 6799 | 4000 |
| Leonis, 70W, 48 LED, Type IV - 94 lm/W | LEN-70W48LED4K-T-4 | 70 | 6569 | 4000 |
| Leonis, 70W, 48 LED, Type V - 84 lm/W | LEN-70W48LED4K-T-5 | 70 | 5899 | 4000 |
| Leonis, 80W, 48 LED, Type II - 99 lm/W | LEN-80W48LED4K-T-2 | 81 | 7966 | 4000 |
| Leonis, 80W, 48 LED, Type III - 96 lm/W | LEN-80W48LED4K-T-3 | 81 | 7746 | 4000 |
| Leonis, 80W, 48 LED, Type IV - 91 lm/W | LEN-80W48LED4K-T-4 | 81 | 7333 | 4000 |
| Leonis, 80W, 48 LED, Type V - 82 lm/W | LEN-80W48LED4K-T-5 | 81 | 6586 | 4000 |
| Leonis, 108W, 48 LED, Type II - 95 lm/W | LEN-108W48LED4K-T-2 | 106 | 9985 | 4000 |
| Leonis, 108W, 48 LED, Type III - 91 lm/W | LEN-108W48LED4K-T-3 | 106 | 9615 | 4000 |
| Leonis, 108W, 48 LED, Type IV - 87 lm/W | LEN-108W48LED4K-T-4 | 106 | 9191 | 4000 |
| Leonis, 108W, 48 LED, Type V - 78 lm/W | LEN-108W48LED4K-T-5 | 106 | 8254 | 4000 |
Product Family Details
Created with beauty, sustainability and durability in mind Leonis will contribute to the beautification of its surroundings. Leonis is not only a technological marvel, it is a work of art that will stand and withstand the test of time. Thanks to a forward thinking design team, the polyvalent Leonis can be fitted with either LED or HID lighting technologies. And if you opt for the latter, a LifeLED module can be retrofitted into your existing Leonis and easily replace your HID optics when you are ready to take advantage of our award-winning LED engine. The sturdy and high-quality materials chosen when manufacturing Leonis make it a durable and dependable luminaire. Because it is made in aluminum, the luminaire is 94% recyclable when it reaches the end of its life.
Benefits
- Reduced energy and maintenance costs
- Reduced light pollution
- Operational life of more than 70,000 hours
- Highly optimized light distribution performance
- Increased design life
Features
- Modular design
- Built with high-quality materials
- Designed using pure lines and dynamic shapes
- Advanced aluminum heat sink
Applications
- Bridges, Monuments, Facades
- Road and Street
