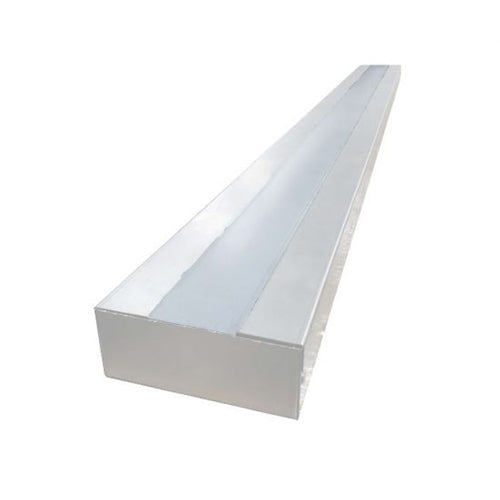

Advantage Environmental Lighting LSBF LED Lensed Strip with Flat Profile
The LSBF is an LED strip with a flat profile that is available in 4’ or 8' body lengths. It is designed for surface or suspended mounting applications. The LSBF utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.
APPLICATIONS
The LSBF flat profile LED strip was designed to be a high quality, energy efficient LED fixture for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body.
OPTICAL SYSTEM
High output LED’s available in 2700K, 3000K, 3500K, 4000K, and 5000K. CRI >82. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
0-10V Dimming Driver included standard. 0-10V 10% dimming driver (no dim to off) standard with SL and ML outputs. 0-10V 1% dimming driver standard with HL-HH outputs. Long-life LED system rated for >100K life hours (L70 @ 25°C). Complies with federal energy efficiency standards.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| LSBF440SLM: 4' Low Profile LED Lensed Strip 33W 4650L 4000K | LSBF440MLM: 4' Low Profile LED Lensed Strip 57W 7974L 4000K | LSBF440HLM: 4' Low Profile LED Lensed Strip 80W 11150L 4000K | LSBF440SMM: 4' Low Profile LED Lensed Strip 86W 12040L 4000K | LSBF440MMM: 4' Low Profile LED Lensed Strip 93W 13016L 4000K | LSBF840SLM: 8' Low Profile LED Lensed Strip 33W 4650L 4000K |
| LSBF840MLM: 8' Low Profile LED Lensed Strip 57W 7974L 4000K | LSBF840HLM : 8' Low Profile LED Lensed Strip 80W 11150L 4000K | LSBF840SMM: 8' Low Profile LED Lensed Strip 86W 12040L 4000K | LSBF840MMM: 8' Low Profile LED Lensed Strip 93W 13016L 4000K | LSBF840HMM: 8' Low Profile LED Lensed Strip 112W 15728L 4000K | LSBF840SHM: 8' Low Profile LED Lensed Strip 118W 16500L 4000K |
| LSBF840MHM: 8' Low Profile LED Lensed Strip 143W 20000L 4000K | LSBF840HHM: 8' Low Profile LED Lensed Strip 179W 25000L 4000K |
