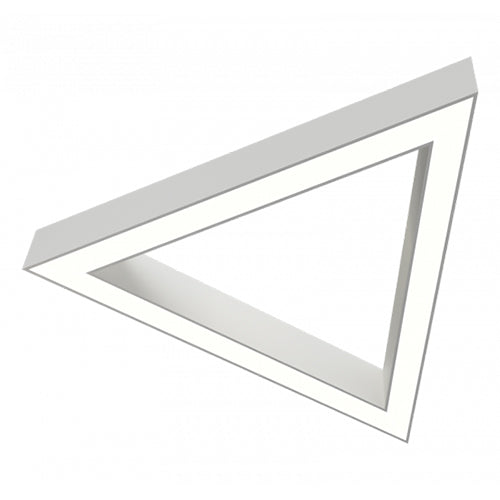

Advantage Environmental Lighting LTDL24DA Triangular Cutout Linear
The LTDL24DA Series is a Linear LED Triangular Aluminum Luminaire is designed to illuminate while contributing to the overall design of any project. Specially designed and custom built, the LTDL24DA is a unique addition to any space.
APPLICATIONS
The LTDL24DA Linear Triangular Aluminum Luminaires are designed to be high quality, energy efficient LED fixtures for use in offices, shopping centers, multi-family spaces, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a 2.5" wide x 4.5" tall extruded aluminum housing. Extruded satin acrylic snap-in lens. Direct/Indirect and Indirect applications available; please contact factory.
ELECTRICAL SYSTEM
0-10V dimming standard, 120-277V. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with Federal energy efficiency standards.
MOUNTING
The fixture is designed for surface mounting, wall mounting, or suspended mounting applications.
LISTINGS
UL and cUL Listed. Damp location rated. Made in the USA. BAA compliant.
WARRANTY
5-Year Limited Warranty.

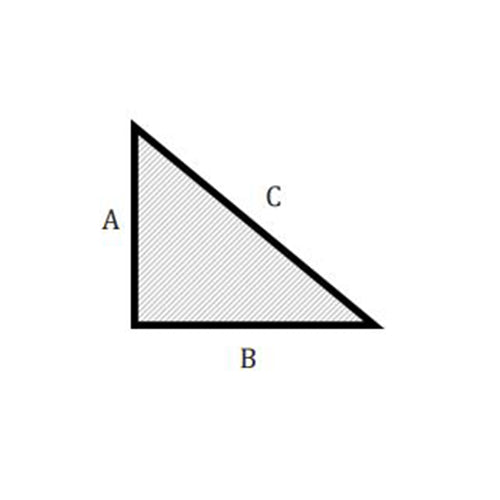

| LTDL24DA40HSSM4A4B4CW: 2.25" X 4.75" 4'x4'x4' Linear LED Triangular Aluminum Luminaire 40W 5000L 4000K | LTDL24DA40HMSM4A4B4CW: 2.25" X 4.75" 4'x4'x4' Linear LED Triangular Aluminum Luminaire 80W 10000L 4000K | LTDL24DA40HSM4A4B4CW: 4" X 4.75" 4'x4'x4' Linear LED Triangular Aluminum Luminaire 40W 5000L 4000K | LTDL24DA40HMSM4A4B4CW: 4" X 4.75" 4'x4'x4' Linear LED Triangular Aluminum Luminaire 80W 10000L 4000K |
