Advantage Environmental Lighting LWHB LED Wash Down High Bay Luminaire

Advantage Environmental Lighting LWHB LED Wash Down High Bay Luminaire

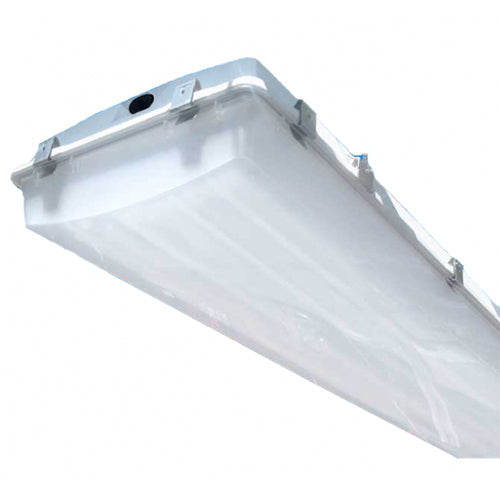

The LWHB Series is an IP Rated Wash Down LED High Bay luminaire. It boasts a gasketed enclosure that is completely dust and moisture resistant. The LWHB utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.

APPLICATIONS

The LWHB Series of Wash Down LED High Bays were designed to be high quality, energy efficient fixtures for use in food processing facilities, kitchens, parking garages, canopy, stairwells, car washes, government facilities, schools, public areas and industrial facilities. Suitable for both indoor and outdoor applications.

CONSTRUCTION

The fixture is constructed of a single-piece 5VA-f1 rated fiberglass upper body and an acrylic diffuser securely positioned with a permanent, poured-in-place; polyurethane sealing gasket. The diffuser and upper components are locked in place and sealed tightly with tamper-resistant stainless steel retaining latches. High impact acrylic/DR material diffuser composition.

OPTICAL SYSTEM

Medium distribution light output. Choice of frosted or clear impact-resistant acrylic or polycarbonate lens. White polyester polymer finish reflector with a minimum 93% reflectivity. Miro 4 reflector available.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. MOUNTING The fixture can be suspended or surface mounted. Utilizes off the shelf 1/2” fittings.

LISTINGS

UL and cUL Listed. CSA approved. NSF International Certified. IP66 and IP67 Certified for Wet Location applications. NEMA 4X. Manufactured in the USA, BAA Compliant.

WARRANTY

5-Year Limited Warranty.

IES Files

Click for LWHB-40-H-F-M.IES

Click for Spec Sheet
