Advantage Environmental Lighting MEF4 Surface Mount Direct Aluminum LED Luminaire
The MEF4 is an architecturally designed Surface Mount Direct Aluminum LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS:
The MEF4 Series of Surface Mount Direct Aluminum LED Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.
CONSTRUCTION:

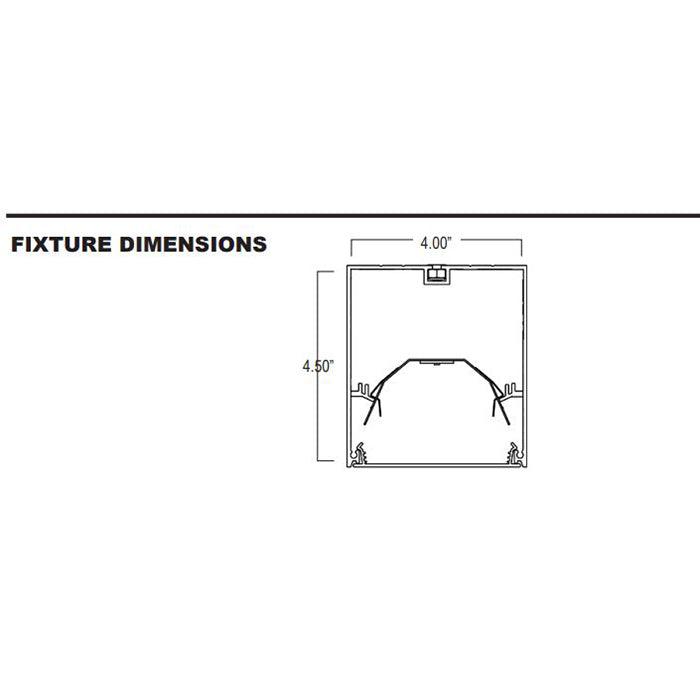

The fixture is constructed of a 4" wide aluminum body. The MEF4 is available in any run length within 1' increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
OPTICAL SYSTEM:
High output LED's available in 3000K, 3500K, 4000K, and 5000K. CRI>82. Linear ribbed acrylic lens. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM:
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100,000 life hours (L70@25°C). Metal gear tray for internal LED driver. Complies with Federal Energy Efficiency Standards.
MOUNTING:

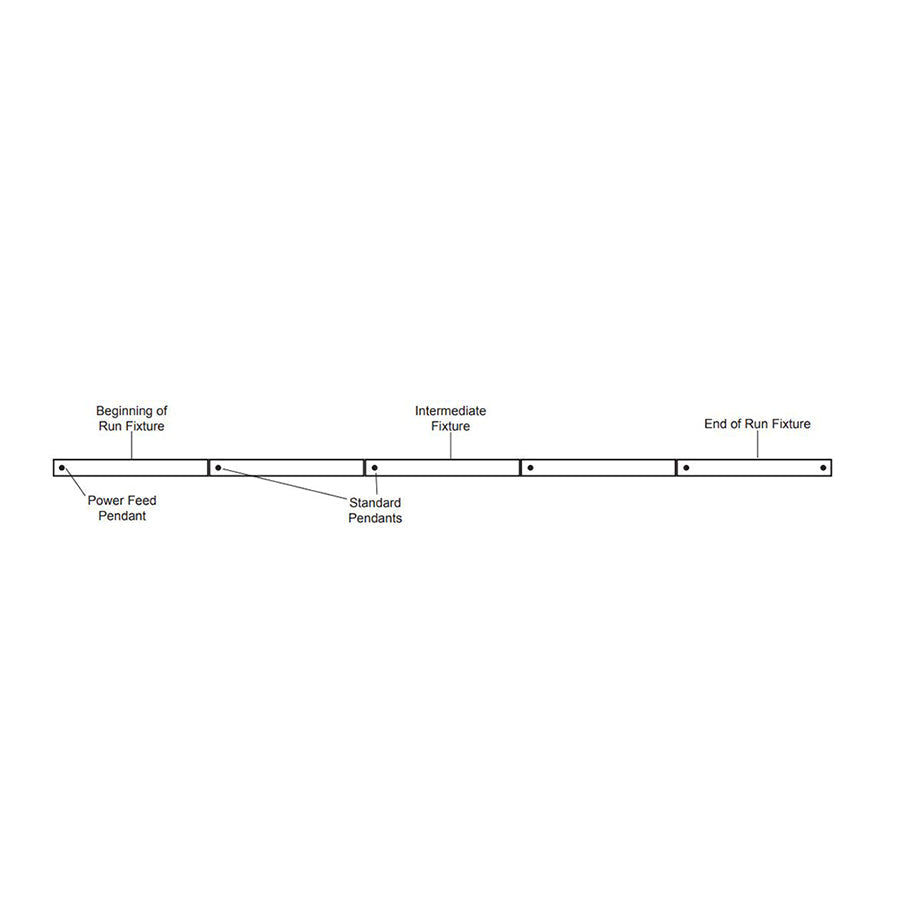

This fixture is designed to be surface mounted. Continuous run available.
LISTINGS:
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY:
5-Year Limited Warranty.
Specification
| Input Voltage | 120/277 VAC |
| Input Frequency | 50/60Hz |
| CRI | 82 (minimum) |
| Operating Ambient Temperature Range (Ta) | Low Ambient -20*C/ High Ambient 50*C |
| Standard dimmimg control | 0-10V |
| CCT | 3000, 3500, 4000, 5000 Kelvin |
| Life time rating | 100.000 hrs at L70 |
| Power factor | >0.9 |
