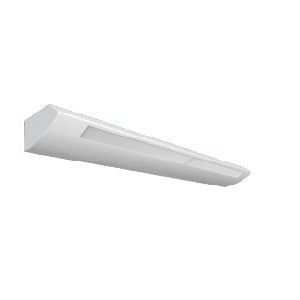

Advantage Environmental Lighting MEK Slotted LED Wall Mount Luminaire
The MEK Series is a Slotted LED Wall Mount Linear Fixture and is a classically styled fixture fit for any interior. It is available in stand alone or continuous run application minimum of 4' increments. Driven by performance and a clean aesthetic, the MEK series represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials with industry leading technology, the MEK Series is available in configurable runs. The MEK Series integrates seamlessly with today’s modern building management systems. With virtually unlimited applications, the MEK Series allows architects and designers the freedom to experiment with their designs without exceeding ever decreasing energy budgets.
APPLICATIONS
The MEK Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of an 18 gauge cold rolled steel body. Units are shipped with die formed aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Architectural die cast chamfered aluminum ends for a complete designer look without exposed fasteners.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. Forward throw optics designed specifically for wall mount applications.
ELECTRICAL SYSTEM
0-10V 1% dimming driver included standard. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
The units mount to a wall bracket that compensates for uneven surfaces and allows for recessed electrical boxes.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty..
Specification
| Input Voltage | 120/277 VAC |
| Standard dimmimg control | 0-10V |
| CCT | 2700, 3000, 3500, 4000, 5000 Kelvin |
