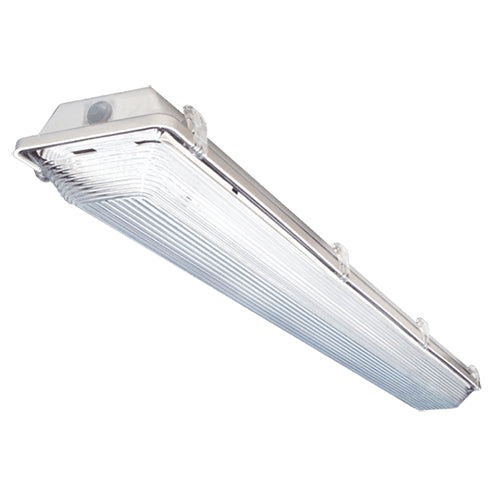

Advantage Environmental Lighting VTL Commercial Grade Vapor Tight Wired for or with LED Tubes

Advantage Environmental Lighting VTL Commercial Grade Vapor Tight Wired for or with LED Tubes

The VTL Series is a Commercial Grade Vapor Tight Wired for or with LED Tubes with a gasketed enclosure that is completely dust and moisture resistant.

APPLICATIONS

The VTL Series of Vapor Tights Wired for or with LED Tubes were designed to be high quality, energy efficient fluorescent fixtures for use in food processing facilities, kitchens, parking garages, canopy, stairwells, car washes, government facilities, schools, public areas and industrial facilities. Suitable for both indoor and outdoor applications.

CONSTRUCTION

The fixture is constructed of a single-piece polycarbonate upper body and an acrylic diffuser securely positioned in a permanent, poured-in-place, polyurethane sealing gasket. The diffuser and upper components are locked in place and sealed tightly with standard plastic latches, stainless steel option available. High impact acrylic/DR material diffuser composition. Positive cam latches. Polyethylene molded end plugs.

OPTICAL SYSTEM

High impact acrylic/DR material diffuser with a continuous formed perimeter. Diffuser softens light dissipation for even light coverage.

ELECTRICAL SYSTEM

120-277V applications.

MOUNTING

The fixture can be suspended or surface mounted. Optional top only hub entry or combination top and end hub entry available for stem mounting applications. Die formed galvanized mounting brackets come standard. No holes required for mounting. Unitized internal/external brass mounting stud for structural integrity and continuity of ground.

LISTINGS

UL and cUL Listed. CSA approved. NSF International Certified. IP65/IP66/IP67Certified for Wet Location applications.

WARRANTY

5-Year Limited Warranty.

Specification

Click for Spec Sheet
