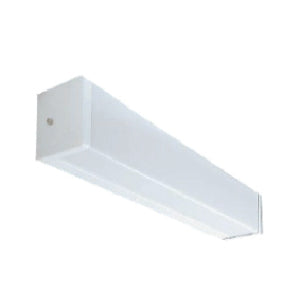

Advantage Environmental Lighting WV13 Wall Vanity
The WV13 Series is a Fluorescent Wall Vanity fixture available in 1 or 2 lamp configurations. It is available with multiple lens and finish options. This durable and sleek-lined fixture is the obvious choice for many applications which are poorly lit with exterior lighting solutions. Enclosed places without windows are fully lit when using the W13 Series for many applications. Dynamic lighting occurs when architects choose this series for rooms such as locker rooms and stairwells which have no access to windows.
APPLICATIONS
The WV13 Series of Fluorescent Wall/Vanity fixtures were designed to be high quaility, energy effiecient fluorescent fixtures for use in wall or ceiling corridors, public areas, halls, stairwells and bathrooms.
CONSTRUCTION
The fixture is contructed of a structurally embossed, heavy gauge, cold rolled steel. Optional 20 gauge body and one-piece end. Baffles and dividers are available for up, down, and/or front light. Ends with tapped holes to accommodate tamper-proof or regular screws.
OPTICAL SYSTEM
White pre-painted polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD.. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Units are designed for surface mounting on either a wall or ceiling.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty.
