Description

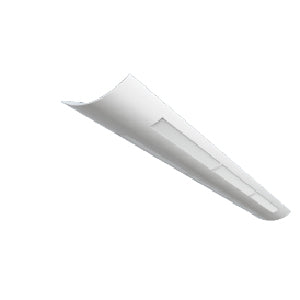

Advantage Environmental Lighting ASP High Performance Slotted Pendant Mount Fluorescent Luminaire
The ASP Series is a Fluorescent Pendant Mount Linear Luminaire available for stand-alone or continuous run applications. Driven by performance and a clean aesthetic, the ASP Series represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials and industry leading technology, the ASP integrates seamlessly with today's modern building management systems.
APPLICATIONS
The ASP Series are designed to be high quality fluorescent fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
Our ASP is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Architectural ends. There are two die cast aluminum designs available, “spade” and “bull-nose” configurations. They are bolted to the die cast joiners for a complete architectural look.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. A computer designed optical system that maximizes the output of the lamps producing very wide distribution for even ceiling brightness with mounting from 12 to 18 inches from the ceiling.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-120-277V electronic program start ballasts T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
IES Files
Product Files
