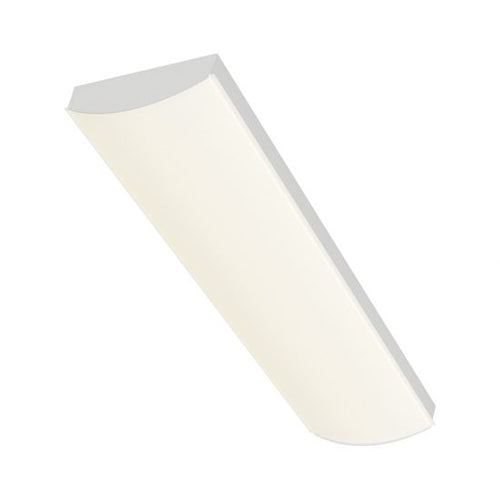

Advantage Environmental Lighting BAO Surface Mount LED Luminaire
The BAO is a streamlined high abuse fixture with smooth edges and countersunk fasteners. Steel end caps and steel body provides strength while an extruded linear ribbed polycarbonate lens obscures the LED image and spreads light evenly. Sloped edge design for anti-ligature applications. The BAO is ideal for areas where the need for aesthetics and protection from vandalism are critical. Suited for areas such as: schools, mental health facilities, stairwells, corridors, detention centers, and public transportation areas.
CONSTRUCTION
Heavy duty, 18 ga. steel housing and end caps provide rigid construction. Stainless-steel and .063" aluminum available. See options for 7/8” knockouts in end caps for continuous row mounting.
FASTENERS
Hex head screws standard secure the lens to the housing. Optional tamperproof Torx with center reject pin fasteners available.
OPTICAL SYSTEM
One-piece extruded UV stabilized opal polycarbonate standard. Ribbed design provides even light distribution while obscuring lamp image and direct glare. Nominal lens thickness = 0.135”.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10v dimming standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards. Consult factory for special tuning to achieve specific lumen outputs.
MOUNTING
This fixture is designed for wall or ceiling mounting.
LISTINGS
UL and cUL Listed. Damp location rated. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty.
IES Files
Click for BAO1T-4-40-SM-M-OS.IES
