Description
Advantage Environmental Lighting BAQ Wall/Surface LED Prison Grade

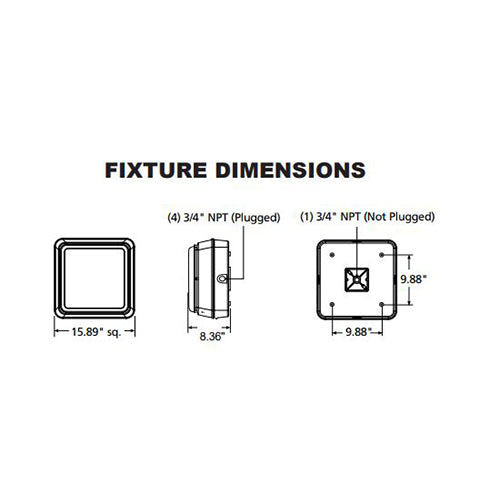

HOUSING
The BAQ is built from 16 gauge stainless steel post painted electrostatically applied white TGIC polyester powder coat – 5-stage pre-treatment. Integral heat sinks. Housing flange interlocks and wraps around lens base producing maximum moisture deflection and resistance to prying. Housing provided with four standoff mounting holes, one 3/4" tapped hole on back of housing, four 3/4" tapped and plugged holes on sides of housing.
ELECTRICAL SYSTEM
Electronic, standard 0-10V, dimming.
OPTICAL SYSTEM
UV-stabilized, high impact resistant, virgin injection molded polycarbonate. Lens secured with four concealed captive Torx screws with center pin. High impact resistant.
LISTINGS
IP64 UL listed for damp location. Wet locations available.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance.
DOORFRAME GASKET
Die-cut, closed cell EPDM self adhesive gasket seals housing to mounting surface. Closed cell, silicone “O” ring gaskets positioned and friction secured in gasket channels of lens base and housing.
WARRANTY
5 - Year Limited Warranty.
