Description

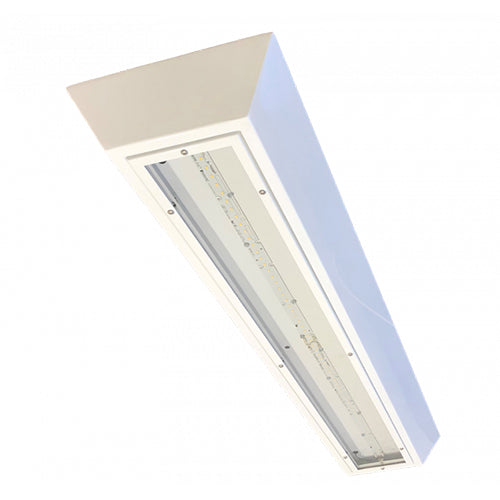

Advantage Environmental Lighting BAR Surface Mount LED Prison Grade
The BAR was designed to be a vandal resistant surface mount luminaire, with prison grade durability. Engineered with a one-piece design, the BAR brings an additional level of security to prison grade fixtures.
DOORFRAME
16-gauge CRS, one-piece inset construction corners. Comes standard with a white TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test of 1,000 hours. Doorframe secured to housing with captive flush mounted vandal resistant stainless steel fasteners (standard).
ELECTRICAL SYSTEM
Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM
Lens per specification (see options) and secured with heavy duty lens retention system.
LISTINGS
UL listed for damp location. Wet location option available.
MOUNTING
Surface mount installation.
HOUSING
Die formed one-piece frame with tightly closed corners. (material and gauge to match housing).
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance.
WARRANTY
5 - Year Limited Warranty.
DOORFRAME GASKET
Neoprene gasket completely seals the fixture.
IES Files
Click for BAR12-40-HL-B16-B16-25P-125C-M.IES
Click for BAR14-40-MM-B16-B16-25P-125C-M.IES
Product Files
