Description

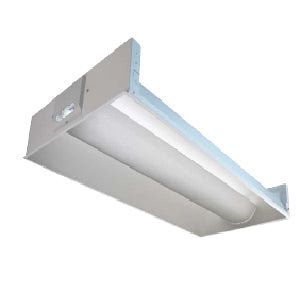

Advantage Environmental Lighting CDI High Performance Direct/Indirect Lay-In Center Basket Fluorescent Luminaire
The CDI Series is a Lay-In Center Basket Fluorescent Direct/Indirect fixture available in 2x2, and 2x4 body sizes. It was designed for standard T-Grid applications. Provides soft, balanced lighting for a comfortable light environment and contemporary appearance.
APPLICATIONS
The CDI Series were designed to be high quaility, energy effiecient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is contructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. Center basket available with a white perforated metal basket with white opal acrylic diffuser inlay or high transmission white frost acylic basket.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
The fixture can be recess mounted in either a standard grid ceiling. Flange Kits available for sheetrock installations (see Options).
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty..
