Description

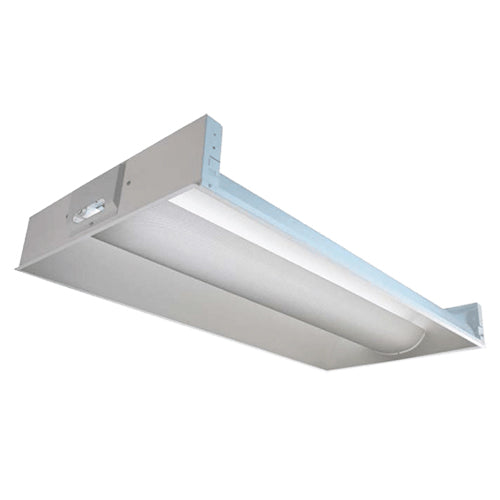

Advantage Environmental Lighting CDIL Lay-In Center Basket Direct/Indirect
The CDIL Series is a Lay-In Center Basket wired For or With LED tubes Direct/Indirect fixture available in 2x2, and 2x4 body sizes. It was designed for standard T-Grid applications. Provides soft, balanced lighting for a comfortable light environment and contemporary appearance.
APPLICATIONS
The CDIL Series were designed to be high quality, energy efficient fixture for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. Center basket available with a white perforated metal basket with white opal acrylic diffuser inlay or high transmission white frost acrylic basket.
ELECTRICAL SYSTEM
120/277V applications
MOUNTING
The fixture can be recess mounted in either a standard grid ceiling. Flange Kits available for sheet rock installations (see Options).
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
IES Files
Product Files
