Description

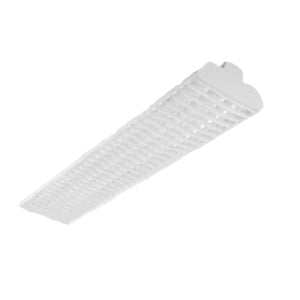

Advantage Environmental Lighting CHB High Performance Louvered Fluorescent Highbay Luminaire
The CHB Series is a louvered Fluorescent High Bay. It was designed for standard suspended or surface mounted high bay applications.
APPLICATIONS
- The CHB Series of Commercial High Bays were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
- The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity.
OPTICAL SYSTEM
- White polyester polymer finish with a minimum 93% reflectivity. Miro 4 reflector available.
ELECTRICAL SYSTEM
- Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. For T8 fixtures utilizing a motion sensor, a Program Start ballast is required (see Options).
- Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
- The fixture can be suspended or surface mounted.
LISTINGS
- UL and cUL Listed. Damp location rated.
WARRANTY
- 1-Year Limited Warranty.
