Description

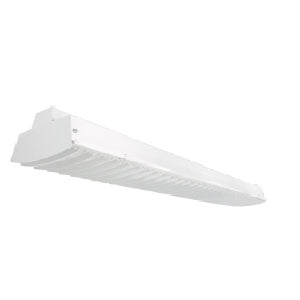

Advantage Environmental Lighting CHBL Commercial High Bay Wired for or with LED Tubes
The CHBL Series is a commercial high bay wired for or with tubes. Available in louvered, lensed, and open housing design. Wire guard available. It is designed for standard suspended or surface mounted high bay applications.
APPLICATIONS
The CHBL Series of commercial high bays are designed to be high quality, energy efficient LED tube luminaires for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a cold rolled steel body. Housing embossed for maximum rigidity. Baked enamel finish in white. This fixture is available in 4' (Single) or 8' (Tandem) lengths.
OPTICAL SYSTEM
Available with white louvers, satin lens, or open design. Optional Wire-guard is compatible with open housing design, as well as lens and louvered fixtures. ELECTRICAL SYSTEM
120-277V Applications. Complies with federal energy efficiency standards.
MOUNTING
The fixture can be suspended or surface mounted. Multiple knockouts for easy mounting.
LISTINGS
UL and cUL Listed. Damp location rated. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty.
| CHBL232SLED: 4' - 2 Lamp Commercial High Bay Wired for LED Tubes | CHBL332SLED: 4' - 3 Lamp Commercial High Bay Wired for LED Tubes | CHBL432SLED: 4' - 4 Lamp Commercial High Bay Wired for LED Tubes | CHBLT232SLED: 8' - 4 Lamp Commercial High Bay Wired for LED Tubes | CHBLT332SLED: 8' - 6 Lamp Commercial High Bay Wired for LED Tubes | CHBLT432SLED: 8' - 8 Lamp Commercial High Bay Wired for LED Tubes |
