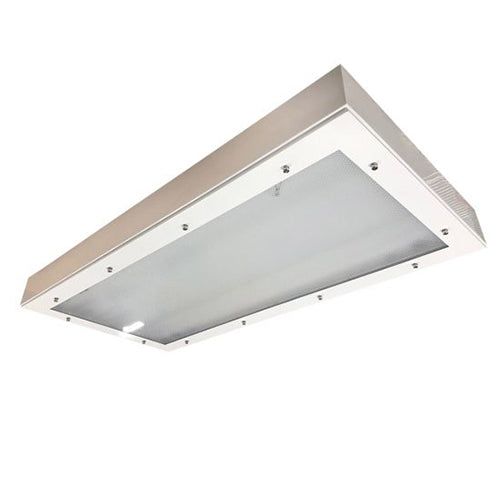

Advantage Environmental Lighting CLE Surface Mount LED Clean Room

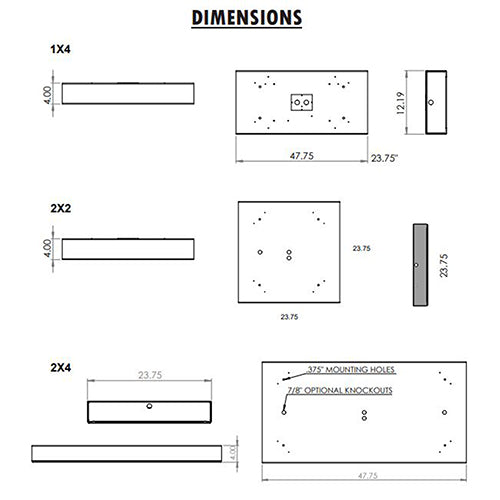

The CLE is a surface mount IC-rated luminaire that provides a costeffective LED clean room lighting solution. Gasketed housing and door frame create a sealed enclosure. The CLE is available in 1x4, 2x2, and 2x4 sizes. Available options such as anti-microbial paint, and wet location. MILSTD 461G available, NSF listed. Inset doorframe suitable for biosafety labs rated BSL 1 and 2, overlap doorframe suitable for biosafety labs rated BSL 3 and 4. Suitable for Class 1/ISO 3 Cleanrooms. NSF/ANSI 2 Food Zone, Splash Zone and Non-Food Zone Applications.
HOUSING
Housing constructed in choice of cold roll steel, stainless steel, or marine grade aluminum. Seam-welded construction. All doors attached to the housing with two stainless steel aircraft cables. Stainless steel Philips head screws secure door frame to housing. White TGIC polyester powder coat – 5-stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Anti-microbial paint optional.
DOORFRAME
Inset or overlap doorframe in choice of cold roll steel, stainless steel, or marine grade aluminum. White TGIC polyester powder coat – 5- stage pre-treatment. Salt spray test: 1,000 hours; Reflectance: 92%. Doorframe secured to housing with stainless steel aircraft cables and Phillips head stainless steel fasteners.
ELECTRICAL SYSTEM
Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 45°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM
Various lens options available, refer to ordering information. RFI 3/8” square metal grid, grounded to the housing.
LISTINGS
Approved to CSA and UL standards. UL listed for wet location. NSF Listed. Food Safe. IP65 rated with inset doorframe, IP66 rated with overlap doorframe. Inset doorframe suitable for biosafety labs rated BSL 1 and 2, overlap doorframe suitable for biosafety labs rated BSL3 and 4.Suitable for Class 1/ISO 3Cleanrooms.
MOUNTING
Surface Mount luminaire.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is >100,000 hours at 70% lumen maintenance. Red (630nm) and Green (520nm) LEDs also available, consult factory.
WARRANTY
5 - Year Limited Warranty.
DOORFRAME GASKET
One-piece closed cell silicone gasket seals doorframe to housing.
