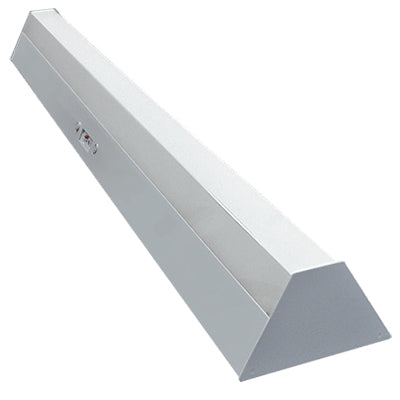

Advantage Environmental Lighting CLF LED Clean Room Surface Mount
The CLF is a low-profile, architecturally designed wall-mounted luminaire built to meet the demands of today's clean room facilities. The CLF provides optimal ambient light with due to its specially designed optics. The CLF LED is designed for use in healthcare facilities, specially for use in patient rooms to facilitate all tasks required by both patient and medical professional.
MOUNTING
Mounting holes are provided for surface mounted applications.
ELECTRICAL SYSTEM
Electronic driver 0-10V, 1% and 10% dimming standard. For outputs SL and ML, 0-10V 10% dimming driver (no dim to off) is standard. For outputs HLHH, 0-10V 1% dim to off dimming driver standard. Complies with federal energy efficiency standards.
OPTICAL SYSTEM
Soft matte white opal polycarbonate diffuser comes standard.
LISTINGS
Damp location UL rated.
HOUSING
Die and brake-formed, code rolled steel housing and ends, or stainless steel housing and ends. If additional housing materials are needed, please consult factory. Knockouts are provided for conduit attachment.
LED
LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K with CRI > 80. Projected life is >100,000 hours at 70% lumen maintenance. 90 CRI available.
FINISH
White, polyester powder painted visible surfaces.
WARRANTY
5 - Year Limited Warranty.
