Description

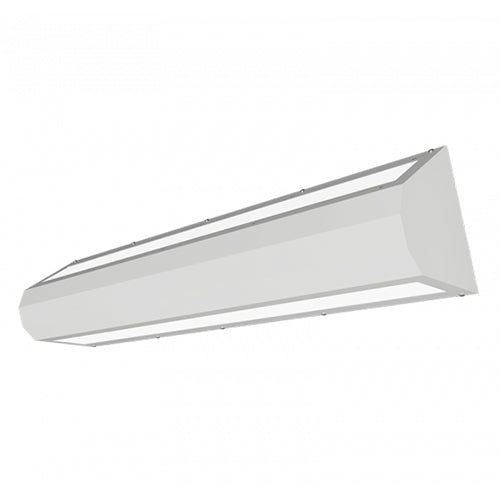

Advantage Environmental Lighting CLM Wall Mount LED Clean Room
The CLM LED is suitable for use in clean room environment. The CLM utilizes one piece clamshell housing as well as security lensing and stainless steel fasteners. The CLM is ideal for clean room environments technical and biomedical labs, food processing/testing centers and pharmaceutical labs. UL listed for damp locations. Available with downlight and uplight, or downlight/uplight only. Uniform design allows fixture with only downlight or only uplight option to be mounted to accommodate both.
FASTENERS
Stainless steel screws standard. Allen-head screws with center reject pin optional
ELECTRICAL SYSTEM
Electronic driver 120-277V, standard 0-10V 1% dimming.
OPTICAL SYSTEM
Various lens options available, consult factory for additional options.
LISTINGS
UL listed. IP65 rated. Suitable for Class 1/ISO 3+ clean rooms.
FINISH
High gloss, electrostatically applied, white powder coat finish, average minimum reflectance 92%. Anti-microbial paint optional.
HOUSING
Clamshell design combines die-formed steel body with continuous welded and ground ends to form a one-piece, seamless, doorless housing. Gasketed housing, lens, and backplate create a sealed wall mount fixture. Two stainless-steel aircraft cables attach housing to back plate.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance.
BACKPLATE
Die-formed 14 gauge steel backplate.
WARRANTY
5 - Year Limited Warranty.
