Description

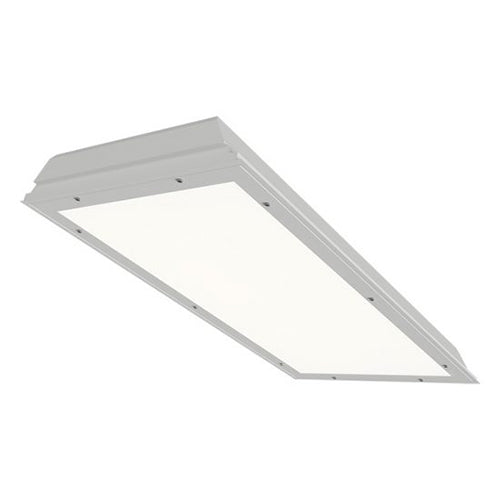

Advantage Environmental Lighting CLZ LED Recessed Clean Room
The CLZ is an IP65, IC-rated luminaire which provides a cost-effective LED clean room lighting solution. Gasketed housing and door frame create a sealed enclosure. The CLZ is available in 2x2 and 2x4 sizes. Available options such as anti-microbial paint, 90 CRI, and 12W emergency driver. Suitable for ISO 5 Cleanrooms. This fixture was designed for healthcare facilities, cleanrooms, and any insulated ceilings.
DOORFRAME
Inset door frame constructed of .063" aluminum. White TGIC polyester powder coat standard, with optional anti-microbial white paint. Closed-cell gasket completely seals the doorframe and the housing.
ELECTRICAL SYSTEM
Electronic driver 0-10V 1% dimming standard. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM
A variety of lensing options are available to fit the needs of any application. If additional lensing options are needed, consult factory.
LISTINGS
Approved to CSA and UL standards. Food Safe. IP65 rating. ISO 5 certified. MOUNTING Recessed grid mounting.
HOUSING
Available in 20 gauge cold roll steel or .063" aluminum. If options needed are not listed, consult factory. Seam-welded construction. Closed cell gasket seals doorframe to housing. White TGIC polyester powder coat standard. Antimicrobial paint optional.
LED
80 CRI or 90 CRI LEDs available in 2700K, 3000K, 3500K, 4000K and 5000K. Life is 100,000 hours at 70% lumen maintenance. LM79, LM80 and TM21 compliant.
WARRANTY
5 - Year Limited Warranty.
Product Files
