Description

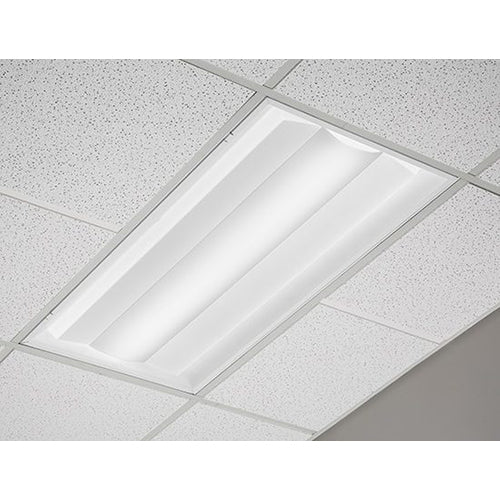

Advantage Environmental Lighting CRRBTW LED Tunable White Curved Ribbed Diffuser Troffer
The CRRBTW Series is tuneable white, ICRated LED troffer with a curved center ribbed design detail. Tuneable white LED system provides CCT range of 2700K-6500K, with 1% dim-to-off dimming. Available in 2x2 and 2x4 body sizes. It was designed for standard T-Grid applications. Architects find these fixtures especially functional for schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture's multi-use capability inspires its use in any area where energy efficiency is a must.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast cover snaps into housing to cover ballast and wires.
APPLICATIONS
The CRRBTW series of lay-in LED troffers were designed to be high quality energy efficiant LED fixtures for use in commercial applications, offices, government facilities, and public areas.
OPTICAL SYSTEM
A curved center ribbed diffuser constructed with a proprietary blend of LED acrylic and impact acrylic resins. Diffuser provides approximately 75% light transmission with excellent LED pixel hiding power.
ELECTRICAL SYSTEM
Tuneable white LED system with CCT range of 2700K-6500K. 0-10V 1% dim-to-off DALI Type 8 Dimming Driver included standard. Long-life LED system rated for >100K life hours
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications UL and cUL Listed. Damp location rated. IC-Rated for dry and damp locations. Manufactured in the USA. BAA compliant.
WARRANTY
5-Year Limited Warranty
