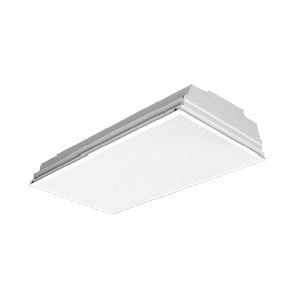

Advantage Environmental Lighting CWL Wet Location Fluorescent Troffer
The CWL Series is a Wet Location Fluorescent Troffer available in 1x4, 2x2, and 2x4 body sizes. It was designed for recessed, wet location applications. Multiple lensing options are available.
APPLICATIONS
The CWL Series of Wet Location Fluorescent Troffers were designed to be high quality, energy efficient fluorescent fixtures for use in wet location environments such as locker rooms, kitchens, and showers.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Dieformed flat steel door with mitered corners. Ballast Cover snaps into housing to cover ballast and wires. Triple-neoprene gasket and inverted lens.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity. A variety of lensing options are available.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
LISTINGS
UL and cUL Listed. Wet location rated.
WARRANTY
1-Year Limited Warranty.
