Description

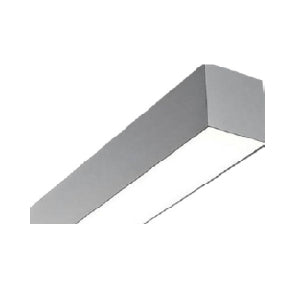

Advantage Environmental Lighting DL6DIDS High Performance 6" X 6" Aperture Fluorescent Direct/Indirect Linear Suspended Luminaire
The DL6DIDS is an architecturally designed Suspended Mount Direct Indirect Steel Fluorescent Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.
APPLICATIONS:
The DL6DID Fluorescent Luminaires were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.
CONSTRUCTION:

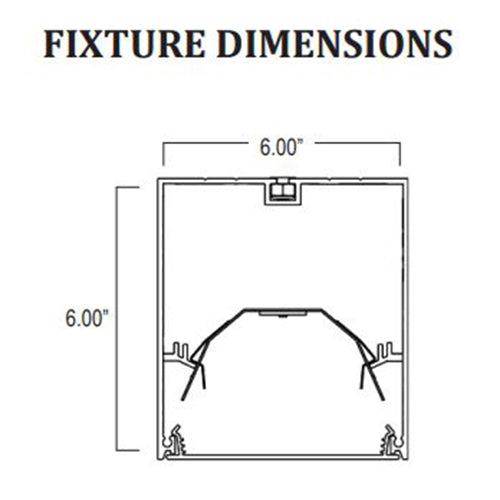

The fixture is constructed of a 6" wide heavy gauge steel body. The DL6DIDS is available in any run length withing 1' increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
OPTICAL SYSTEM:
The direct/indirect lighting configuration of the DL6DIDS provides ample downlight for tasks or general illumination while providing an aesthetically pleasing uplight to brighten spaces and eliminate the “cave” effect. Comes standard with lamp dividers to field customize the percentage of direct/indirect light being delivered.
ELECTRICAL SYSTEM:
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING:
This fixture is designed to be suspended. Continuous run available.
LISTINGS:
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY:
5-Year Limited Warranty.
IES Files
Click for DL6DIDS-2-32-S-M-W-50-4.IES
Product Files
