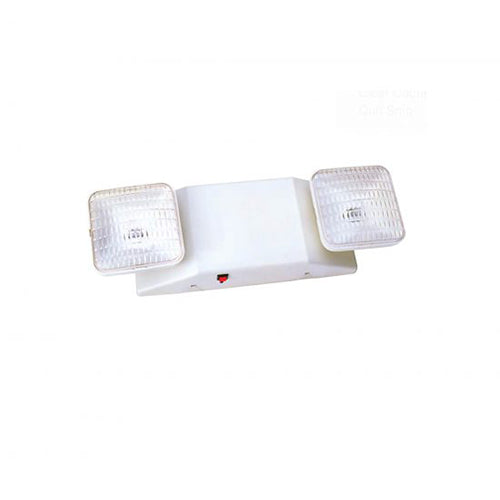

Advantage Environmental Lighting EM10 Incandescent Emergency Unit

Advantage Environmental Lighting EM10 Incandescent Emergency Unit

ILLUMINATION

• Two fully adjustable 5.4W glare free PAR-type lamp heads.
• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable Sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
• Top and side knockout for conduit applications.
• Suitable for wall or ceiling mount.

HOUSING

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

OPTIONS

• USA: Substantial transformation assembly in the U.S. complies with “AssembLED in the USA” under the Buy American Act.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (0°C – 50°C)

Click for Spec Sheet
