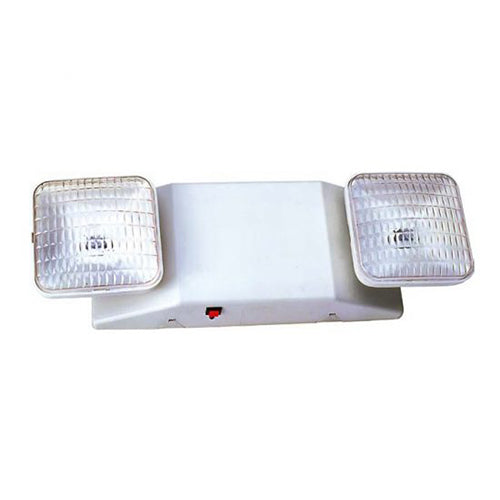

Advantage Environmental Lighting EM10BAA - BAA Compliant Incandescent Thermoplastic Emergency Unit
ILLUMINATION
Two fully adjustable 5.4 watt glare-free lamp heads. Smooth thermoplastic reflector and plastic lens for optimal light distribution.
ELECTRICAL
Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge. 6V maintenance-free, rechargeable sealed lead acid battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Universal knockout pattern on back plate for wall mount.Snaps into place making internal electrical connections.Knockout for conduit applications.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant,high-impact resistant, thermoplastic in white or black finish
OPTIONS
SDT: Self-diagnostic feature performs monthly, biannual,and annual tests to ensure reliable operation and meets electrical and life safety codes. HTR: Optional internal heater for cold temperature(-9°C – 50°C)applications.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Batteries prorated for two years.Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Meets CSA C22.2 No. 141-02 Requirements for unit equipment.UL listed for damp locations (20°C – 50°C).
