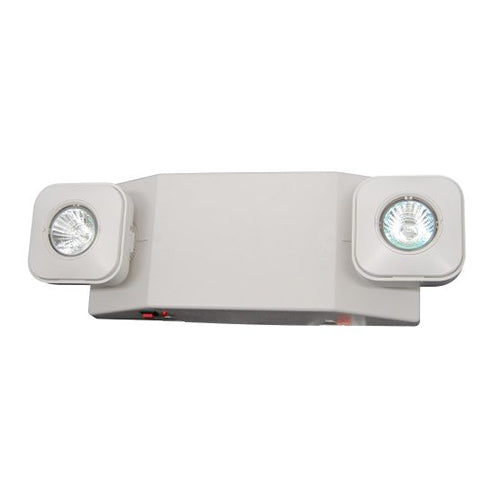

Advantage Environmental Lighting EM11R-16 MR-16 Emergency Unit

Advantage Environmental Lighting EM11R-16 MR-16 Emergency Unit

ILLUMINATION

• Two fully adjustable, 5W, MR-16 halogen lamp heads standard. Optional 3.3W white LED lamp heads.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Universal knockout pattern on back plate for wall mount.Snaps into place making internal electrical connections.
• Knockout for conduit applications.

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

OPTIONS

• SDT: Self-diagnostic feature performs monthly, biannual,and annual tests to ensure reliable operation and meets electrical and life safety codes.
• HTR: Optional internal heater for cold temperature (-9°C – 50°C) applications.
• USA: Substantial transformation assembly in the U.S.complies with "Assembled in the USA” under the Buy American Act.
• LED: 3.3W high performance MR-16 base LED lamps for increased center-to-center spacing.
• PLED: 5.0W high performance MR-16 base LED lamps for premium center-to-center spacing

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery pro rated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (20°C – 40°C).

IES Files

Click for EM11R-16.IES

Click for Spec Sheet
