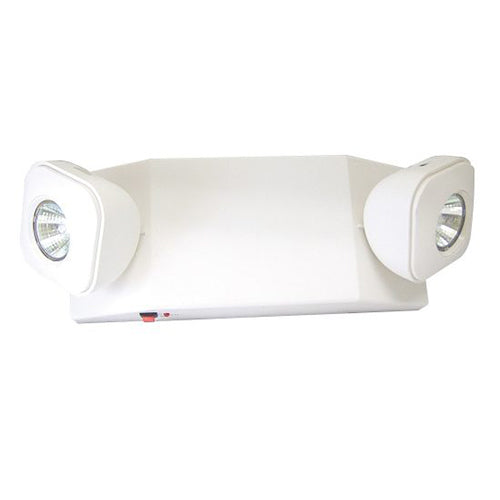

Advantage Environmental Lighting EM11R-16BAA - BAA Compliant MR-16 Emergency Unit
ILLUMINATION
Two fully adjustable, 5.0 watt, MR-16 halogen lamp heads standard.
High performance MR16 halogen lamps with smooth metallized reflector and glass lens for optimal light distribution.
ELECTRICAL
Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge.
6V maintenance-free, rechargeable sealed lead acid battery. Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Universal knockout pattern on back plate for wall mount. Snaps into place making internal electrical connections. Knockout for conduit applications.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish.
OPTIONS
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
HTR: Optional internal heater for cold temperature (-9°C – 50°C) applications.
LED: 3.3W high performance MR-16 base LED lamps for increased center-to-center spacing.
PLED: 5.0W high performance MR-16 base LED lamps for premium center-to-center spacing.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Battery pro rated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
