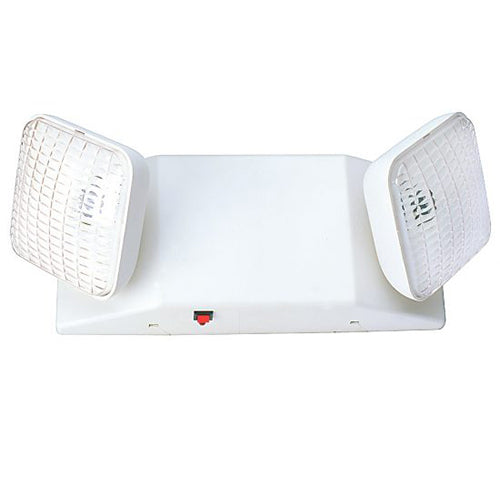

Advantage Environmental Lighting EM15BAA - BAA Compliant Remote Capable Incandescent Emergency Unit
ILLUMINATION
- Two fully-adjustable 5.4 watt, glare-free lamp heads. Smooth plastic reflector and lens for optimal light distribution.
ELECTRICAL
- Dual 120/277 voltage. Offers “11W” of remote capacity. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (low voltage disconnect) prevents battery from deep discharge.
- 6V maintenance-free, rechargeable Sealed lead acid battery.
- Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
- Top and back K/O for conduit applications. Suitable for wall or ceiling mount.
HOUSING
- Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
OPTIONS
- SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.
WARRANTY/LISTING
- Five year warranty on all electronics and housing. Battery pro-rated for two years. Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,
- Local and State Codes. UL listed for damp locations. (20°C – 40°C)
