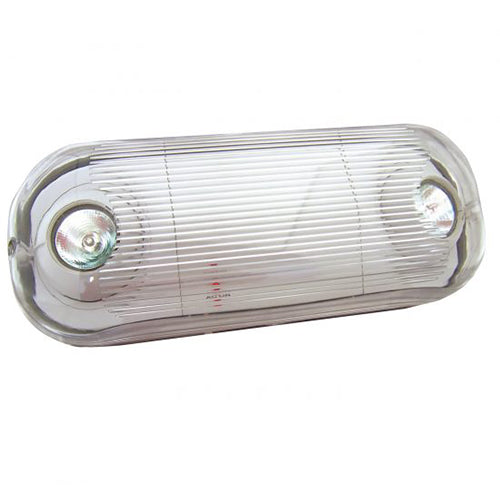

High performance MR16 halogen lamps with smooth metallized reflector and glass lens for optimal light distribution
ELECTRICAL
Dual 120/277 voltage.
Charge rate/power “ON” LED indicator light and push-totest switch for mandated code compliance testing.
LVD (low voltage disconnect) prevents battery from deep discharge.
6V maintenance-free, rechargeable sealed lead acid battery.
Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Universal knockout pattern on back plate for wall mount. Snaps into place making internal electrical connections.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in gray or black finish.
Fully gasketed clear polycarbonate cover offers protection against wet, non-hazardous dust, corrosive atmospheres and to water spray or splashing water locations.
OPTIONS
HTR: Optional internal heater for cold temperature (-9°C – 40°C) applications.
CW: Optional internal heater and battery blanket for extreme cold temperature applications, (-25°C – 50°C MR-16 halogen) (-25°C – 40°C LED).
USA: Substantial transformation assembly in the U.S. complies with “Assembled in the USA” under the Buy American Act.
LED: 3.3W high performance MR-16 base LED lamps for increased center-to-center spacing.
CEC: Certified to CEC under Title 20 Regulations.
PLED: 5.0W high performance MR-16 base LED lamps for premium center-to-center spacing
WARRANTY / LISTING
Five year warranty on all electronics and housing. Battery prorated for two years.
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
