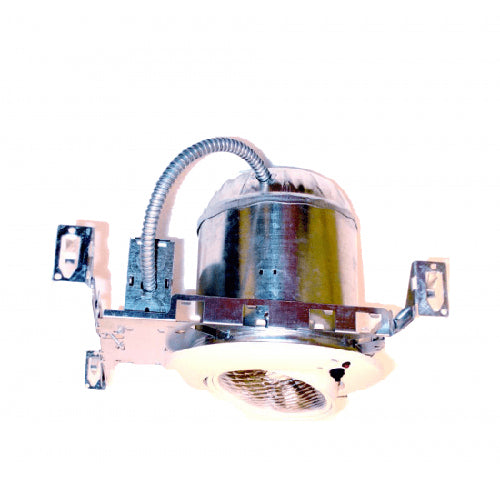

Advantage Environmental Lighting EM3 Adjustable Recessed Emergency Down-light Unit

Advantage Environmental Lighting EM3 Adjustable Recessed Emergency Down-light Unit

ILLUMINATION

• Adjustable ultra-bright 8W bi-pin halogen lamp head.
• Sealed beam PAR36-type gimbal trim with smooth chromeplated metallized reflector and plastic lens offers optimallight distribution.

ELECTRICAL

• Dual 120/277 voltage.
• Junction box with 3/4” knockouts for AC input.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deep discharge.
• 6V maintenance-free, rechargeable Sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

HOUSING

• Steel mounting frame and housing.
• 6” recessed housing with mounting bar hangers.
• Impact-resistant thermoplastic adjustable gimbal trim.
• Trim securely attached to housing with spring clips.

MOUNTING

• Compatible with drywall or drop ceiling mount installations. Bar hangers included.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations

Click for Spec Sheet
