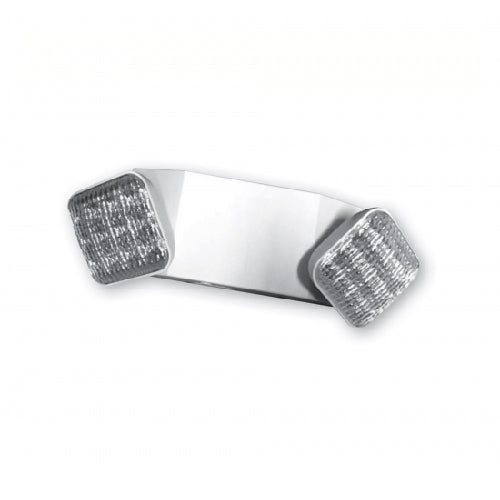

Advantage Environmental Lighting EM4-1 LED Emergency Unit
ILLUMINATION
Long lasting, efficient, ultra bright white LED lamp heads.
1W (8 LEDs x 0.125 watt) per head.
High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.
Adjustable LED lamp heads provide optimal center-to-center spacing. High-lumen option available for increased centerto-center spacing.
ELECTRICAL
Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.
Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
3.6V long life, maintenance-free, rechargeable NiCd battery.Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
Top and side knockout for conduit applications.
Suitable for wall or ceiling mount.
HOUSING
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
OPTIONS
SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
HL: 12-LEDs per head provide increased center-to-center spacing.
SPV: UL Listed for special voltage option.
WARRANTY / LISTING
Five year warranty on all electronics and housing. Batteries pro rated for five years.
UL Listed for damp locations (0°C – 50°C).
Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
