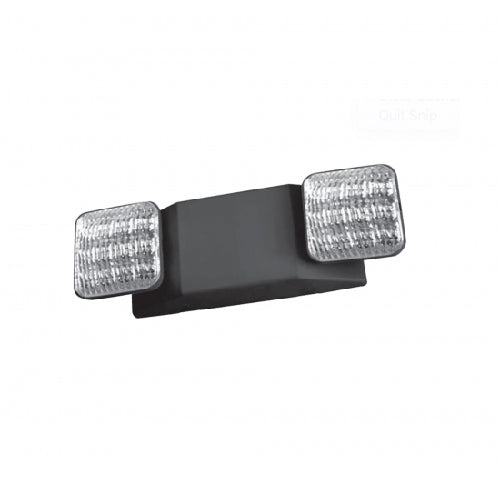

Advantage Environmental Lighting EM7 Remote Capable LED Emergency Unit

Advantage Environmental Lighting EM7 Remote Capable LED Emergency Unit

ILLUMINATION

• Long lasting, efficient, ultra bright white LED lamp heads.
• 1W (8 LEDs x 0.125) per head.
• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.
• Adjustable LED lamp heads provides optimal center-tocenter spacing. High-lumen option available for increased center-to-center spacing.

ELECTRICAL

• Dual 120/277 voltage standard. Optional 120/347V (for Canada) and multi-tap 208/220/240 voltage available.
• Remote capacity standard.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.
• Top and side knockout for conduit applications.
• Suitable for wall or ceiling mount.

HOUSING

• Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.

OPTIONS

• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
• HL: 12-LEDs per head provide increased center-to-center spacing.
• SPV: UL Listed for special voltage option.
• CSA: Tested to meet requirements of CSA C22.2 No. 141.10 standard for emergency lighting equipment.

WARRANTY / LISTING

• Five year warranty on all electronics and housing. Battery pro rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL (standard)/CSA (optional) listed for damp locations (0°C – 50°C).
