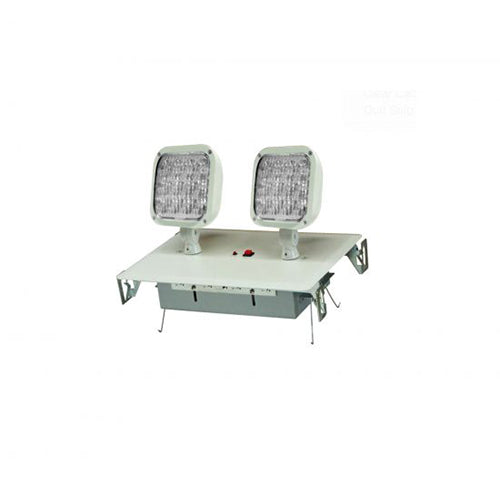

Advantage Environmental Lighting EMR5 Recessed LED Emergency Unit

Advantage Environmental Lighting EMR5 Recessed LED Emergency Unit

ILLUMINATION

• Two fully adjustable 1.0W white LED lamp heads.
• High performance chrome-plated metal reflectors and plastic lens for optimal light distribution.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-testswitch for mandated code compliance testing.
• LVD (low voltage disconnect) prevents battery from deepdischarge.
• 6V maintenance-free, rechargeable sealed lead acid battery.
• Internal solid-state transfer switch automatically connects the internal battery to lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two rate charger initiates batterycharging to recharge a discharged battery in 24 hours.
• Remote capacity of 10W standard.

MOUNTING

• Bar hangers on the back box for recessed mount.
• Compatible with drop ceiling mount installations. Bar hangers included.

HOUSING

• Durable 20-gauge steel trim plate in white or black finish.
• Trim securely attached to housing with spring clips.
• Five year warranty on all electronics and housing. Batterypro rated for two years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes.
• UL Listed for dry locations. (25°C)

IES Files

Click for EMR5.IES

Click for Spec Sheet
