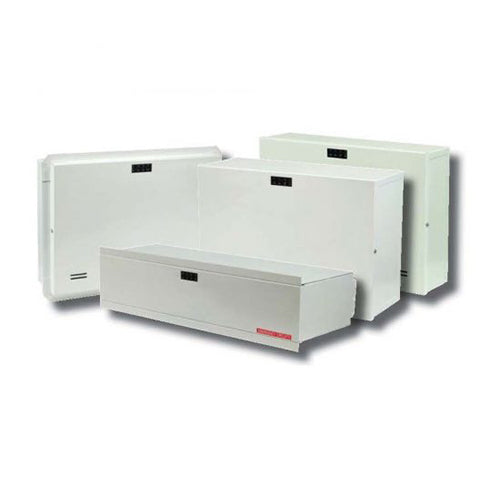

Advantage Environmental Lighting EPSB Emergency Inverter - Mini
The EPSB Mini Inverter provides sinusoidal emergency power of up to 220 Watts to any of our fixtures. Clean, sinusoidal AC power allows for the inverter to be remotely located up to 1,000 feet away from the controller fixtures. The EPSB Mini Inverter comes in recessed, surface, or ceiling mount variations, and are designed to install quick and easily. Our EPSB model supports Normally On, Normally Off , and switched operation, as well as the combination of any of these(see wiring diagram).
APPLICATIONS
The EPSB Mini inverter is the perfect for any application that requires emergency power, and requires full light output. Useful for hospitals, schools, prisons, restaurants, stores, warehouses, etc.
CONSTRUCTION
Constructed of heavy duty steel, and powder-coated white to provide scratch and corrosion resistance. Custom color finishes are available on request.
ELECTRICAL SPECIFICATIONS
120 - 277VAC input/output. 98% efficiency at full load. True Sinusoidal waveform emergency power, digitally controlled. Transfer time of power is under 1 second. Input/Output frequencies of 60Hz (±2%). Built in inverter fuse for output protection.

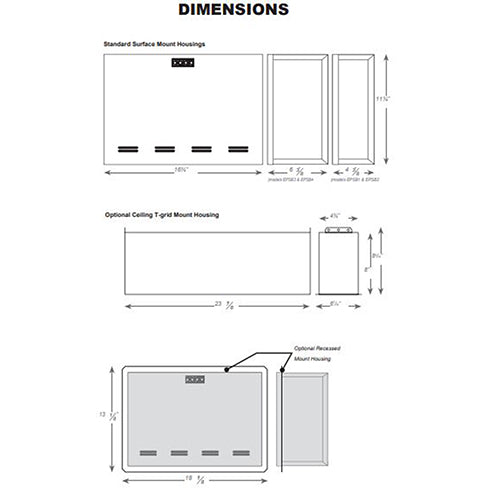

MOUNTING
The EPSB Mini Inverter is available in surface mounted, recessed, and T-Grid mounting options.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
3-Year Limited Warranty.
