Advantage Environmental Lighting FREF Troffer Retrofit Reflector LED Tube Ready
The FREF series is a LED tube ready troffer retrofit reflector kit designed to modify existing troffers to higher efficiency LED tube options. It is designed to save time and energy to upgrade fixtures rather than replacing them. Unique perforated design ensures a perfect and tight fit into the troffer, as well as quick installation. The FREF was designed and is manufactured in Fort Worth, TX.
APPLICATIONS
The FREF series of LED tube ready troffer retrofit kits turn any troffer into an LED Tube ready troffer. Engineered for a clean installed look, the FREF is perfect for upgrading any style troffer.
CONSTRUCTION

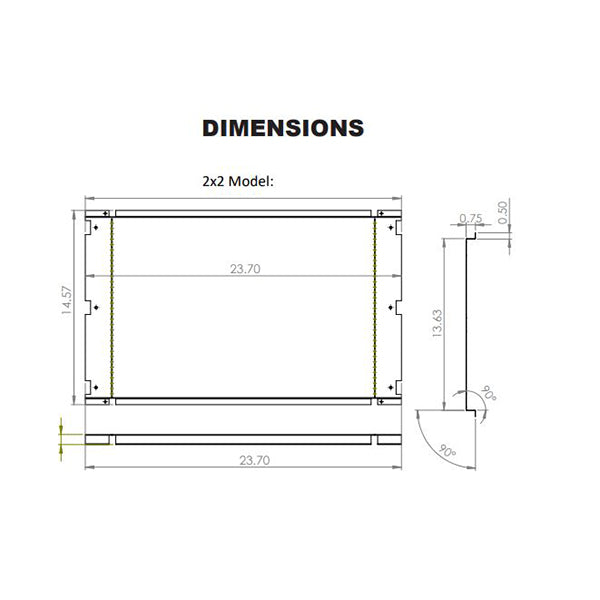

The fixture is constructed of heavy gauge steel. Designed to retrofit into any existing 1x4, 2x2 or 2x4 troffer.
OPTICAL SYSTEM
White polyester polymer finish with a minimum 93% reflectivity.
ELECTRICAL SYSTEM
120/277V Applications.
MOUNTING
The fixture is designed to retrofit into a troffer via mounting holes. Single piece panels with perforated design allow for quick installation.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
