Description
Advantage Environmental Lighting FRX LED Curved Diffuser Troffer

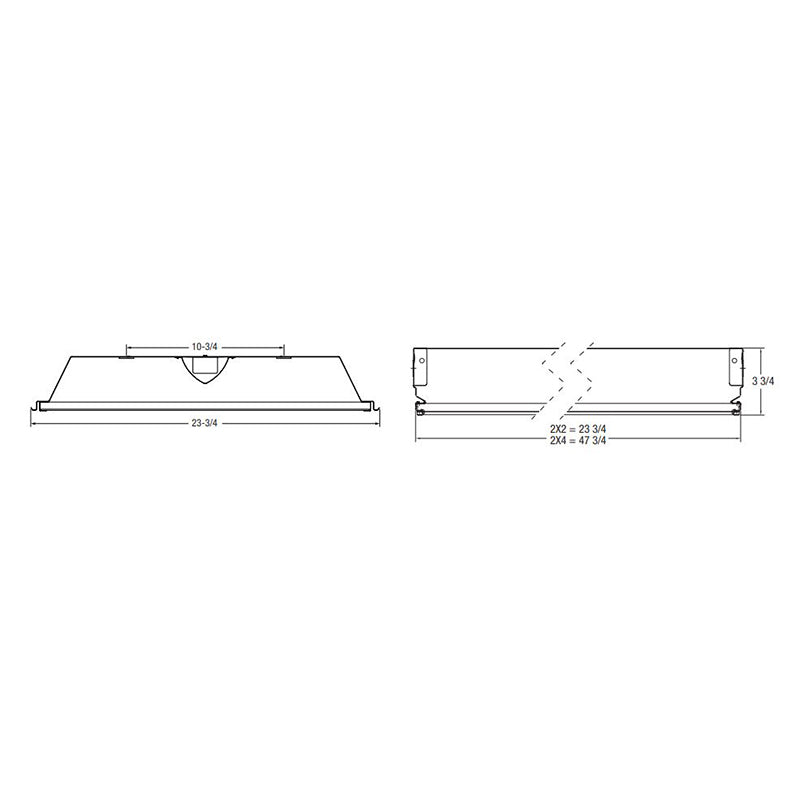

The FRX Series is an IC-Rated LED troffer with a subtle, gently curbed diffuser to simulate the look of a skylight. Available in 2x2 and 2x4 body sizes. It was designed for standard T-Grid applications. Architects find these fixtures especially functional for schools, offices, government facilities, public offices, and all other commercial types of applications on the market today. This fixture's multi-use capability inspires its use in any area where energy efficiency is a must.
APPLICATIONS
The FRX Series of lay-in LED troffers were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a 23 gauge heavy steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling. Ballast Cover snaps into housing to cover ballast and wires.
MOUNTING
The fixture can be recess mounted in a standard grid ceiling.
OPTICAL SYSTEM
Gentle, subtly curved shaped diffuser constructed with a proprietary blend of LED acrylic and impact acrylic resins. Diffuser provides approximately 75% light transmission with excellent LED pixel hiding power.
ELECTRICAL SYSTEM
0-10V Dimming Driver included standard. Long-life LED system rated for >100K life hours (L70 @ 40°C). Complies with federal energy efficiency standards.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated. IC rated for dry and damp locations. Manufactured in the USA, BAA compliant.
WARRANTY
5-Year Limited Warranty.
