Advantage Environmental Lighting L2ST 2 Light Staggered LED Strip
The L2ST Series is a 2 Lamp Staggered LED Strip available in 2’ thru 8’ body lengths. It was designed for surface or suspended mounting applications.
APPLICATIONS
The 2ST Series of LED Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
CONSTRUCTION

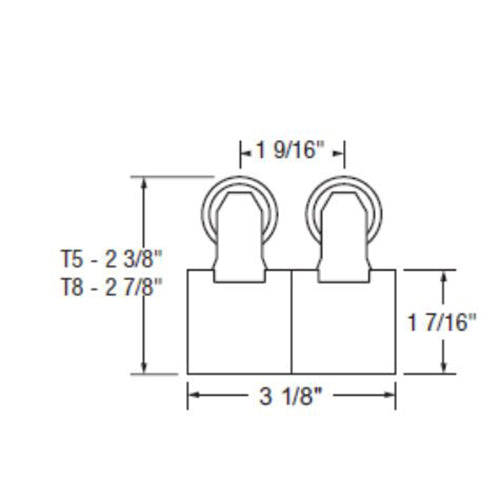

The fixture is constructed of a heavy gauge cold rolled steel body. 4” offset provides even, shadow-free lighting in continuous row installations.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty..
