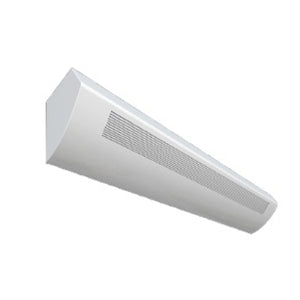

Advantage Environmental Lighting LAPW Perforated LED Wall Mount Linear
The LAPW Series is a LED Wall Mount Linear fixture available available for stand-alone or continuous run applications.
APPLICATIONS
The LAPW Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Architectural die cast chamfered aluminum ends for a complete designer look without exposed fasteners.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. Forward throw optics designed specifically for wall mount applications.
ELECTRICAL SYSTEM
0-10V Dimming included standard. Long-life LED system rated for >100,000 life hours (L70@25°C).
MOUNTING
The units mount to a wall bracket that compensates for uneven surfaces and allows for recessed electrical boxes. The wall brackets are 48-3/4 long and two are needed with an eight foot housing.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| LAPW40SM4: 4' Perforated LED Wall Mount 3.3W 506LM/FT MV 120-277V 4000K | LAPW40HSM4: 4' Perforated LED Wall Mount 5.1W 709LM/FT MV 120-277V 4000K | LAPW40MM4: 4' Perforated LED Wall Mount 6.9W 965LM/FT MV 120-277V 4000K | LAPW40HMM4: 4' Perforated LED Wall Mount 10.3W 1468LM/FT MV 120-277V 4000K | LAPW40SM8: 8' Perforated LED Wall Mount 3.3W 506LM/FT MV 120-277V 4000K | LAPW40HSM8: 8' Perforated LED Wall Mount 5.1W 709LM/FT MV 120-277V 4000K |
| LAPW40MM8: 8' Perforated LED Wall Mount 6.9W 965LM/FT MV 120-277V 4000K | LAPW40HMM8: 8' Perforated LED Wall Mount 10.3W 1468LM/FT MV 120-277V 4000K |
