Description

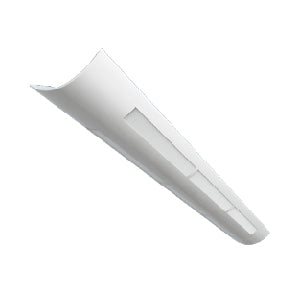

Advantage Environmental Lighting LASP Linear Slotted LED Pendant Mount
The LASP Series is an LED Pendant Mount Linear fixture available available for stand-alone or continuous run applications. Direct/Indirect application offered as an option (see ordering instructions below).
APPLICATIONS
The LASP Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
Our LASP is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs or end caps. Architectural ends. There are two die cast aluminum designs available, “spade” and “bullnose” configurations. They are bolted to the die cast joiners for a complete architectural look.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. A computer designed optical system that maximizes the output of the lamps producing very wide distribution for even ceiling brightness with mounting from 12 to 18 inches from the ceiling.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with Federal energy efficiency standards. 0-10 Dimming Standard.
MOUNTING
Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| LASP40SMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct Only 13.2W 2024L 4000K | LASP40MMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct Only 20.4W 2836L 4000K | LASP40HSMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct Only 27.6W 3860L 4000K | LASP40HMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct Only 41.2W 5872L 4000K | LASP40SMW8ECS/CPY100/CPPFY100: 8' Slotted Linear Direct Only 26.4W 4048L 4000K | LASP40MMW8ECS/CPY100/CPPFY100: 8' Slotted Linear Direct Only 40.8W 5672L 4000K |
| LASP40HSMW8ECS/CPY100/CPPFY100: 8' Slotted Linear Direct Only 55.2W 7720L 4000K | LASP40HMMW8ECS/CPY100/CPPFY100: 8' Slotted Linear Direct Only 82.4W 11744L 4000K | LASP40S40SMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct/Indirect 13.2W 2024L Indirect 13.2W 2024L Direct 4000K | LASP40S40MMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct/Indirect 13.2W 2024L Indirect 20.4W 2836L Indirect 4000K | LASP40S40HSMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct/Indirect 13.2W 2024L Indirect 27.6W 3860L Direct 4000K | LASP40S40HMW4ECS/CPY100/CPPFY100: 4' Slotted Linear Direct/Indirect 13.2W 2024L Indirect 41.2W 5872L Direct 4000K |
| LASP40S40SMW8ECS/CPY100/CPPYF100: 8' Slotted Linear Direct/Indirect 26.4W 4048L Indirect 26.4W 4048L Direct 4000K | LASP40S40MMW8ECS/CPY100/CPPYF100: 8' Slotted Linear Direct/Indirect 26.4W 4048L Indirect 40.8W 5672L Direct 4000K | LASP40S40HS8WECS/CPY100/CPPFY100: 8' Slotted Linear Direct/Indirect 26.4W 4048L Indirect 55.2W 7720L Direct 4000K | LASP40S40HMW8ECS/CPY100/CPPYF100: 8' Slotted Linear Direct/Indirect 26.4W 4048L Indirect 82.4W 11744L Direct 4000K | ECB*: Bull Nose End Cap (Replace ECS with ECB, Price per each)* |
IES Files
Click for LASP-3500K-H-M-4.IES
