Advantage Environmental Lighting LASQLD Low Profile Pendant Lighting Direct
The LASQLD Series is an LED Pendant Mount Linear fixture available available for stand-alone or continuous run applications.
APPLICATIONS
The LASQLD Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
Our LASQLD is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. A computer designed optical system that maximizes the output of the lamps producing very wide distribution for even ceiling brightness with mounting from 12 to 18 inches from the ceiling.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V Dimming driver included standard. Long-life LED system rated for >120K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING

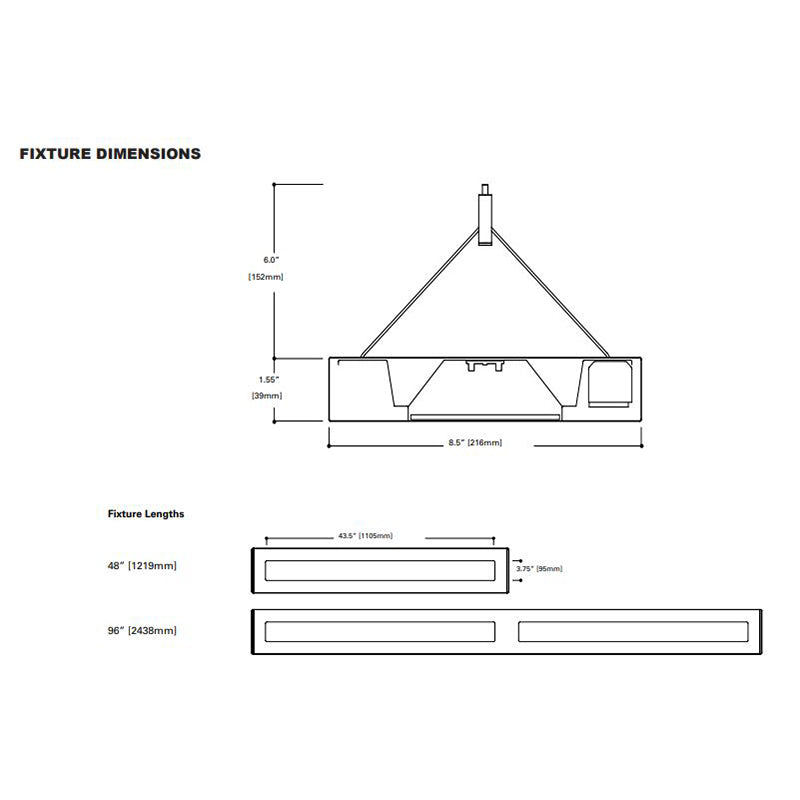

Designed to mount on exact 4 foot and 8 foot centers. Joiners will accept stems, single cable and power cords as supplied by others.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| LASQLD40SSMW2/CPY100/CPPFY100: 2' Low Profile Pendant Direct Only 6.6W 1012L 4000K | LASQLD40MSMW2/CPY100/CPPFY100: 2' Low Profile Pendant Direct Only 10.2W 1418L 4000K | LASQLD40HSMW2/CPY100/CPPFY100: 2' Low Profile Pendant Direct Only 13.8W 1930L 4000K | LASQLD40HMSMW2/CPY100/CPPFY100: 2' Low Profile Pendant Direct Only 20.6W 2936L 4000K | LASQLD40SSMW4/CPY100/CPPFY100: 4' Low Profile Pendant Direct Only 13.2W 2024L 4000K | LASQLD40MSMW4/CPY100/CPPFY100: 4' Low Profile Pendant Direct Only 20.4W 2836L 4000K |
| LASQLD40HSMW4/CPY100/CPPFY100: 4' Low Profile Pendant Direct Only 27.6W 3860L 4000K | LASQLD40HSMW4/CPY100/CPPFY100: 4' Low Profile Pendant Direct Only 41.2W 5872L 4000K | LASQLD40SSMW8/CPY100/CPPFY100: 8' Low Profile Pendant Direct Only 26.4W 4048L 4000K | LASQLD40MSMW8/CPY100/CPPFY100: 8' Low Profile Pendant Direct Only 40.8W 5672L 4000K | LASQLD40HSMW8/CPY100/CPPFY100: 8' Low Profile Pendant Direct Only 55.2W 7720L 4000K | LASQLD40HSMW8/CPY100/CPPFY100: 8' Low Profile Pendant Direct Only 82.4W 11744L 4000K |
