Description

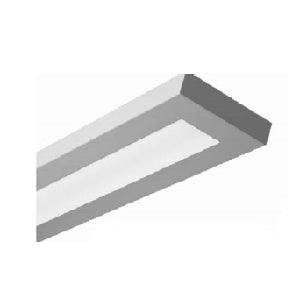

Advantage Environmental Lighting LASQLDID Low Profile Pendant Lighting Direct/Indirect
The LASQLDID Series is an LED Pendant Mount Linear fixture available available for stand-alone or continuous run applications.
APPLICATIONS
The LASQLDID Series were designed to be high quality, energy efficient LED fixtures for use in corridors, offices, government facilities, schools, and public areas.
CONSTRUCTION
Our LASQLDID Is constructed of a heavy gauge cold rolled steel body. Units are shipped with die cast aluminum joiners installed for structural continuity and for attaching other units for continual runs.
OPTICAL SYSTEM
High output LED's available in 3000K, 3500K, 4000K, and 5000K. CRI>82. Choice of satin lens or .100 #12 acrylic lens provides for a beautiful architectural design while maintaining optimal light output. If additional lensing options are needed, consult factory.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications, 0-10V Dimming driver included standard. Long-life LED system rated for >120K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
This fixture is designed to be suspended. Continuous run available.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty.
| LASQLDID40S40SSMW2/CPY100/CPPFY100: 2' Direct/Indirect Low Profile Pendant Indirect 6.6W 1012L Direct 6.6W 1012L 4000K | LASQLDID40S40MSMW2/CPY100/CPPFY100: 2' Direct/Indirect Low Profile Pendant Indirect 6.6W 1012L Direct 10.2W 1418L 4000K | LASQLDID40S40HSMW2/CPY100/CPPFY100: 2' Direct/Indirect Low Profile Pendant Indirect 6.6W 1012L Direct 13.8W 1930L 4000K | LASQLDID40S40HSMW2/CPY100/CPPFY100: 2' Direct/Indirect Low Profile Pendant Indirect 6.6W 1012L Direct 20.6W 2936L 4000K | LASQLDID40S40SSMW4/CPY100/CPPFY100: 4' Direct/Indirect Low Profile Pendant Indirect 13.2W 2024L Direct 13.2W 2024L 4000K | LASQLDID40S40MSMW4/CPY100/CPPFY100: 4' Direct/Indirect Low Profile Pendant Indirect 13.2W 2024L Direct 20.4W 2836L 4000K |
| LASQLDID40S40HSMW4/CPY100/CPPFY100: 4' Direct/Indirect Low Profile Pendant Indirect 13.2W 2024L Direct 27.6W 3860L 4000K | LASQLDID40S40HSMW4/CPY100/CPPFY100: 4' Direct/Indirect Low Profile Pendant Indirect 13.2W 2024L Direct 41.2W 5872L 4000K | LASQLDID40S40SSMW8/CPY100/CPPFY100: 8' Direct/Indirect Low Profile Pendant Indirect 26.4W 4048L Direct 26.4W 4048L 4000K | LASQLDID40S40MSMW8/CPY100/CPPFY100: 8' Direct/Indirect Low Profile Pendant Indirect 26.4W 4048L Direct 40.8W 5672L 4000K | LASQLDID40S40SSMW8/CPY100/CPPFY100: 8' Direct/Indirect Low Profile Pendant Indirect 26.4W 4048L Direct 55.2W 7720L 4000K | LASQLDID40S40HSMW8/CPY100/CPPFY100: 8' Direct/Indirect Low Profile Pendant Indirect 26.4W 4048L Direct 82.4W 11744L 4000K |
IES Files
Click for LASQLDID-35-M-35-S-S-M-W-4.IES
