Description

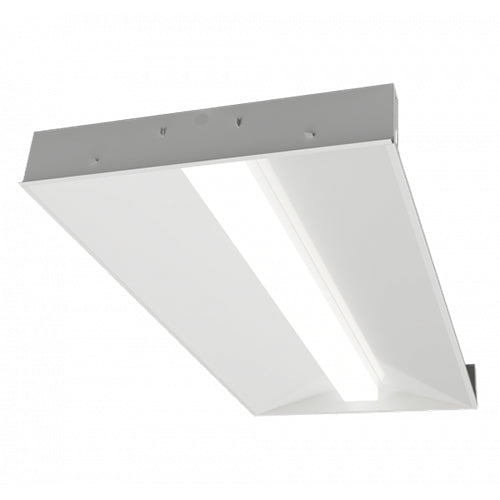

Advantage Environmental Lighting LCBD Lay-in Square Center Basket Direct/Indirect
The LCBD series is a lay-In LED square center basket direct/indirect fixture available in 1x2, 1x4, 2x2, and 2x4 body sizes. Sleek design provides a comfortable light environment and contemporary appearance.
APPLICATIONS
The LCBD series was designed to be high quality, energy efficient LED fixtures for use in commercial applications, office buildings, government facilities, schools, and public areas.
CONSTRUCTION
The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.
OPTICAL SYSTEM
High transmission extruded acrylic lens distributes light efficiently and glare free and diffuses the appearance of the LEDs. High reflectance white reflector distributes light through optical elements.
ELECTRICAL SYSTEM
Electronic driver 0-10V dimming standard. 120/277V applications. Additional driver options available. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.
MOUNTING
This fixture was designed to be recessed mounted.
LISTINGS
UL and cUL Listed. Damp location rated. Made in the USA.
WARRANTY
5-Year Limited Warranty.
| LCBD1440SLM: 1x4 LED Recessed Square Center Basket Direct/Indirect 33W 4650L 4000K | LCBD1440MLM: 1x4 LED Recessed Square Center Basket Direct/Indirect 57W 7974L 4000K | LCBD2240SLM: 2x2 LED Recessed Square Center Basket Direct/Indirect 33W 4650L 4000K | LCBD2240MLM: 2x2 LED Recessed Square Center Basket Direct/Indirect 57W 7974L 4000K | LCBD2440SLM: 2x4 LED Recessed Square Center Basket Direct/Indirect 33W 4650L 4000K | LCBD2440MLM: 2x4 LED Recessed Square Center Basket Direct/Indirect 57W 7974L 4000K |
| LCBD2440HLM: 2x4 LED Recessed Square Center Basket Direct/Indirect 80W 11150L 4000K |
