Advantage Environmental Lighting LCBDR Wide Lens Recessed Center Basket Direct/Indirect

Advantage Environmental Lighting LCBDR Wide Lens Recessed Center Basket Direct/Indirect

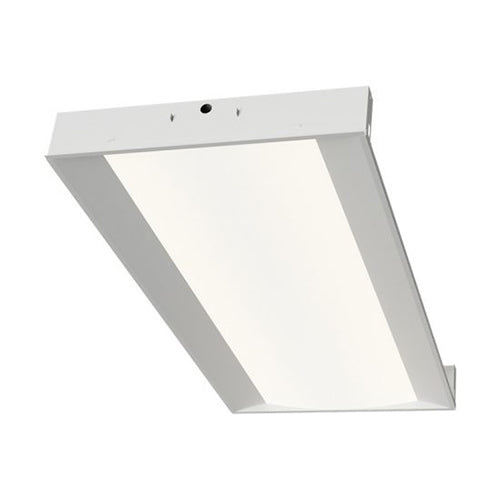

The LCBDR series is a lay-In LED center basket direct/indirect fixture available in 1x2, 1x4, 2x2, and 2x4 body sizes. Sleek design provides a comfortable light environment and contemporary appearance.

APPLICATIONS:

The LCBDR series was designed to be high quality, energy efficient LED fixtures for use in commercial applications, office buildings, government facilities, schools, and public areas.

CONSTRUCTION:

The fixture is constructed of a heavy gauge steel body. Housing embossed for maximum rigidity. Rounded side flanges for safe handling.

OPTICAL SYSTEM:

High transmission extruded acrylic FROSTED lens distributes light efficiently and glare free and diffuses the appearance of the LEDs. High reflectance white reflector distributes light through optical elements.

ELECTRICAL SYSTEM:

Electronic driver 0-10V dimming standard. 120/277V applications. Additional driver options available. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.

MOUNTING:

This fixture was designed to be recessed mounted.

LISTING:

UL and cUL Listed. Damp location rated. Made in the USA.

WARRANTY:

5-Year Limited Warranty.

Click for Spec Sheet
