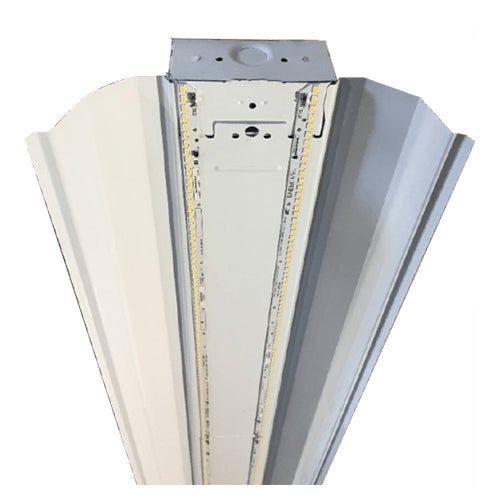

Advantage Environmental Lighting LCS Commercial LED Strip
The LCS Series is a Commercial LED Strip available in a 4’ body length. It was designed for surface or suspended mounting applications.
APPLICATIONS
The LCS Series of Commercial LED Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, public areas, and industrial lighting applications.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body and reflector.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
0-10V Dimming Driver included standard. Long-life LED system rated for >100K life hours (L70 @ 45°C). Metal gear tray for internal LED driver. Complies with Federal energy efficiency standards.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple configurations.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
5-Year Limited Warranty..
LCS440SLM: 4' Commercial LED Strip 33W 4650L 4000K |
LCS440MLM: 4' Commercial LED Strip 57W 7974L 4000K |
LCS440HLM: 4' Commercial LED Strip 80W 11150L 4000K |
LCS440SMM: 4' Commercial LED Strip 86W 12040L 4000K |
LCS840SLM: 8' Commercial LED Strip 33W 4650L 4000K |
LCS840MLM: 8' Commercial LED Strip 57W 7974L 4000K |
LCS840HLM: 8' Commercial LED Strip 80W 11150L 4000K |
LCS840SMM: 8' Commercial LED Strip 86W 12040L 4000K |
LCS840MMM: 8' Commercial LED Strip 93W 13016L 4000K |
LCS840HMM: 8' Commercial LED Strip 112W 15728L 4000K |
LCS840SHM: 8' Commercial LED Strip 118W 16500L 4000K |
LCS840MHM: 8' Commercial LED Strip 143W 20000L 4000K |
LCS840HHM: 8' Commercial LED Strip 179W 25000L 4000K |
IES Files
Click for LCS4-40-SM-CSS2-M.IES
