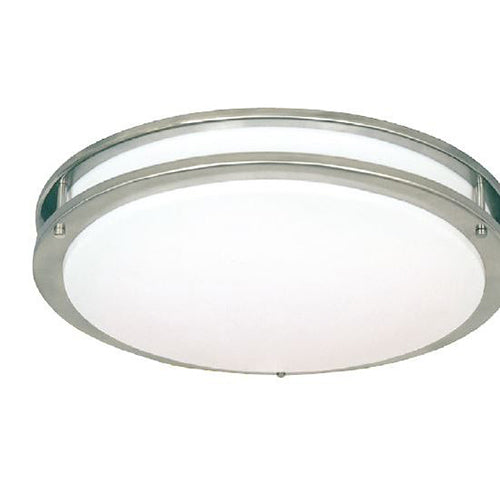

Advantage Environmental Lighting LCSPR LED Spill Ring Series Close-to-Ceiling Luminaire
Housing
- Die-formed Cold-rolled Steel
- Pendant Type Options
- Finish Option: -SN Satin Nickel, -PB Polish Brass, -W White, -ORB Oil Rubbed Bronze
Optical
Shade: High Transmission Acrylic Create Excellent Light Distribution and Uniformity
Electrical
High Power Factor ( > 0.95), Low THD ( < 20%) 0-10V dimming standard on the following product models: LCSPR-15-23W-3000KXX-M, LCSPR-15-23W-4000K-XX-M, LCSPR-16-28W-3000K-XX-M, LCSPR-18-35W-3000K-XX-M, LCSPR-15-24W-MCT-XX-M, LCSPR-18-35W-MCT-XX-M
Lamp
Built-in LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light. Color Temperature Option – 3000K, 3500K, 4000K, 5000K MCT Type: Get Preferable Fixture Color Temperature by Slide Switch on LED Board Color Temperature Option – 3000K, 3500K, 4000K
Certifications
ETL/cETL Listed, Suitable for Damp Locations
Warranty
5 Years Warranty on Driver and LED Module
LCSPR17WSN40K12: Spill Ring Series LED Close-to-Ceiling, 17 Watt 1200 Lumen, Satin Nickel finish, 4000K, 120V Triac dimming, 12"Dia x 4.2"H |
LCSPR18WSN40K12: Spill Ring Series LED Close-to-Ceiling, 18 Watt 1400 Lumen, Satin Nickel finish, 4000K, 120V-277V, 12"Dia x 4.2"H |
LCSPR24WSN40K14: Spill Ring Series LED Close-to-Ceiling, 24 Watt 2250 Lumen, Satin Nickel finish, 4000K, 120V-277V, 14.5"Dia x 4.6"H |
LCSPR28WSN40K16: Spill Ring Series LED Close-to-Ceiling, 28 Watt 1200 Lumen, Satin Nickel finish, 4000K, 120V-277V, 16"Dia x 4.9"H |
LCSPR33WSN40K18: Spill Ring Series LED Close-to-Ceiling, 33 Watt 3300 Lumen, Satin Nickel finish, 4000K, 120V-277V, 17.8"Dia x 4.9"H |
