Advantage Environmental Lighting LDAWW Angled Surface Mount Wall Wash


Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Advantage Environmental Lighting

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

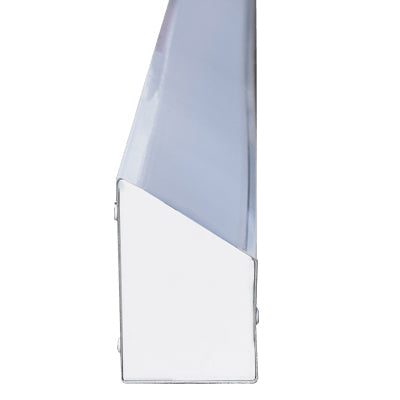

Advantage Environmental Lighting LDAWW Angled Surface Mount Wall Wash

The LDAWW is an architecturally designed Surface Mount Direct Steel LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.

APPLICATIONS

The LDAWW LED Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.

CONSTRUCTION

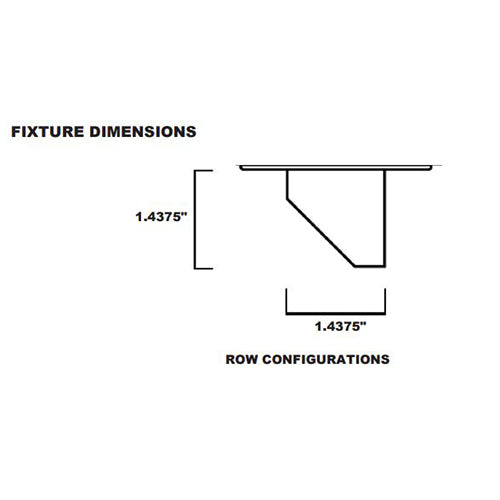

The fixture is constructed of a 1.4375" wide heavy gauge steel body. The LDAW is available in any run length withing 2' increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.

OPTICAL SYSTEM

High output LED's available in 3000K, 3500K, 4000K, and 5000K. CRI>82. Linear ribbed acrylic lens. White polyester polymer finish with a high reflectivity.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100,000 life hours (L70@25°C). Metal gear tray for internal LED driver. Complies with Federal Energy Efficiency Standards.

MOUNTING

This fixture is designed to be surface mounted. Continuous run available.

LISTINGS

Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.

WARRANTY

5-Year Limited Warranty.

LDAWW40SSMW4: 4' Angled Surface Mount Wall LED Luminaire 30W 4650L 4000K LDAWW40MSMW4: 4' Angled Surface Mount Wall LED Luminaire 57W 7974L 4000K LDAWW40HSMW4: 4' Angled Surface Mount Wall LED Luminaire 80W 11150L 4000K LDAWW40SSMW8: 8' Angled Surface Mount Wall LED Luminaire 33W 4650L 4000K LDAWW40MSMW8: 8' Angled Surface Mount Wall LED Luminaire 57W 7974L 4000K LDAWW40HSMW8: 8' Angled Surface Mount Wall LED Luminaire 80W 11150L 4000K
LDAWW40SSMW8: 8' Angled Surface Mount Wall LED Luminaire 86W 12040L 4000K LDAWW40MSMW8: 8' Angled Surface Mount Wall LED Luminaire 93W 13016L 4000K LDAWW40HSMW8: 8' Angled Surface Mount Wall LED Luminaire 112W 15728L 4000K

IES Files

Click for LDAWW-48-3500K.IES

Product Files

Click for Spec Sheet
