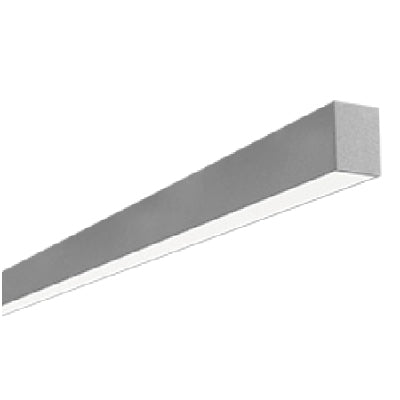

Advantage Environmental Lighting LDL6RAWL Recessed Aluminum Wet Location
The LDL6RAWL is an architectural luminaire designed for wet, recessed mounted locations. It is available for continuous run mounting. Driven by performance and a clean aesthetic, the LDL6RAWL series represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials with industry leading technology, the 6 Series is available in configurable runs. The LDL6RAWL integrates seamlessly with today’s modern building management systems. With virtually unlimited applications, the 6 Series allows architects and designers the freedom to experiment with their designs without exceeding ever decreasing energy budgets.
APPLICATIONS
The LDL6RAWL Series is designed to be a high quality, energy efficient LED luminaire for use in hotel lobbies, offices, common areas, hospitals, museums, retail, schools, wet area and professional business environments.
CONSTRUCTION

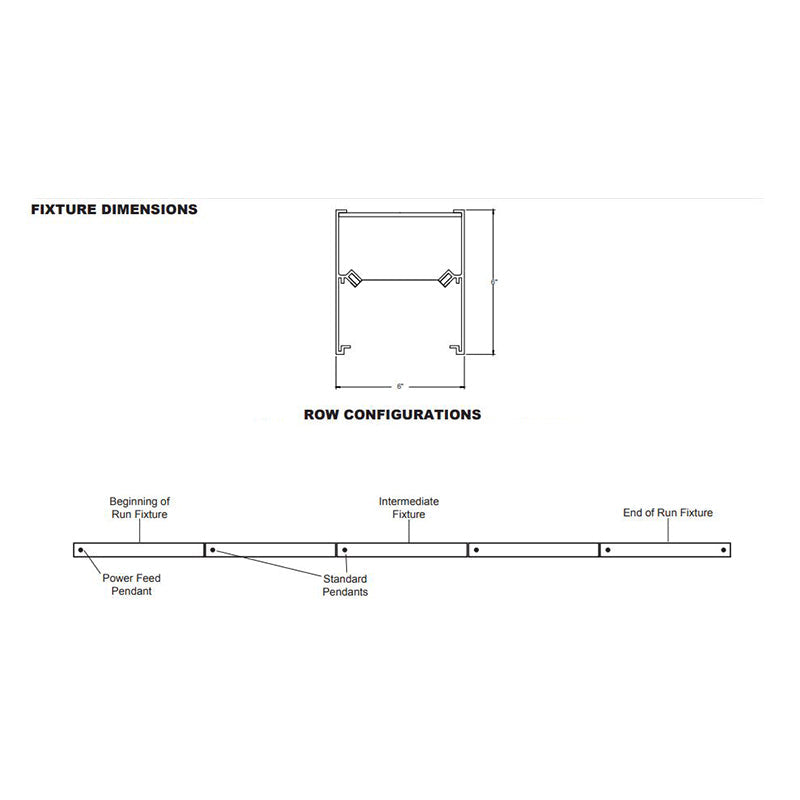

The fixture is constructed of a 6” wide extruded aluminum body. The fixture is available in any run length within 1’ increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Satin lens. White polyester polymer finish with a high reflectivity.
ELECTRICAL SYSTEM
0-10v dimming driver included standard, driver upgrades available. Longlife LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
The fixture can be surface mounted, recess mounted in either a standard grid ceiling, or it may be ordered with a flange kit or mud flange kit to allow for mounting into sheet rock. Continuous run available.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. IP65 rated.
WARRANTY
5-Year Limited Warranty.
IES Files
Click for LDL6RAWL-X-40-HM-S-M-W-4.IES
Click for LDL6RAWL-X-40-HS-S-M-W-4.IES
Click for LDL6RAWL-X-40-M-S-M-W-4.IES
Click for LDL6RAWL-X-40-S-S-M-W-4.IES
