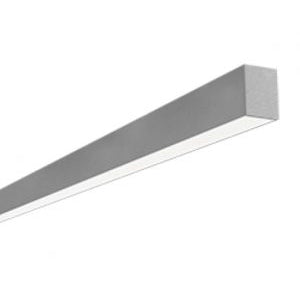

Advantage Environmental Lighting LDL6SMAWL Surface Mount Aluminum Wet Location
The LDL6SMAWL is an architectural luminaire designed for wet, surface mounted locations. It is available for continuous run mounting. Driven by performance and a clean aesthetic, the LDL6SMAWL series represents the ultimate in simplicity; a narrow, uniform line of light. Constructed with premium materials with industry leading technology, the 6 Series is available in configurable runs. The LDL6SMAWL integrates seamlessly with today’s modern building management systems. With virtually unlimited applications, the 6 Series allows architects and designers the freedom to experiment with their designs without exceeding ever decreasing energy budgets.
APPLICATIONS
The LDL6SMAWL Series is designed to be a high quality, energy efficient LED fixtures for use in hotel lobbies, offices, common areas, hospitals, museums, retail, schools, wet area and professional business environments.
CONSTRUCTION

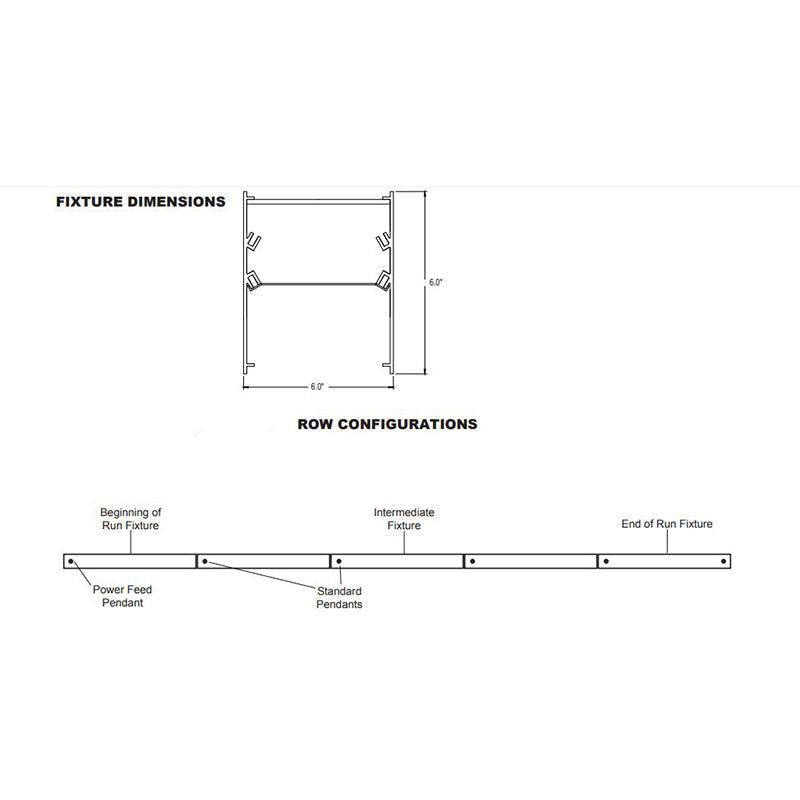

The fixture is constructed of a 6.0” wide extruded aluminum body. The fixture is available in any run length within 1’ increments. Heavy duty housing for extra rigidity and straight alignment.
OPTICAL SYSTEM
High output LED's available in 3000K, 3500K, 4000K, and 5000K. CRI>82. Satin lens provides for a beautiful architectural design while maintaining optimal light output.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. 0-10V Dimming Standard. Long-life LED system rated for >120,000 life hours (L70@25°C). Metal gear tray for internal LED driver. Complies with Federal Energy Efficiency Standards.
MOUNTING
The fixture can be surface mounted. Continuous run available.
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.
WARRANTY
5-Year Limited Warranty.
