Advantage Environmental Lighting LDL6SMS Surface Mount Direct Steel LED Luminaire

Advantage Environmental Lighting LDL6SMS Surface Mount Direct Steel LED Luminaire

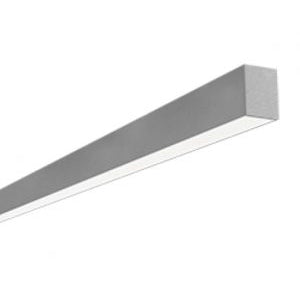

The LDL6SMS is an architecturally designed Surface Mount Direct Steel LED Luminaire that is classically styled and fit for any interior. It is available for continuous run mounting.

APPLICATIONS

The LDL6SMS LED Luminaires were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, hotel lobbies, museums, government facilities, schools, and public areas.

CONSTRUCTION

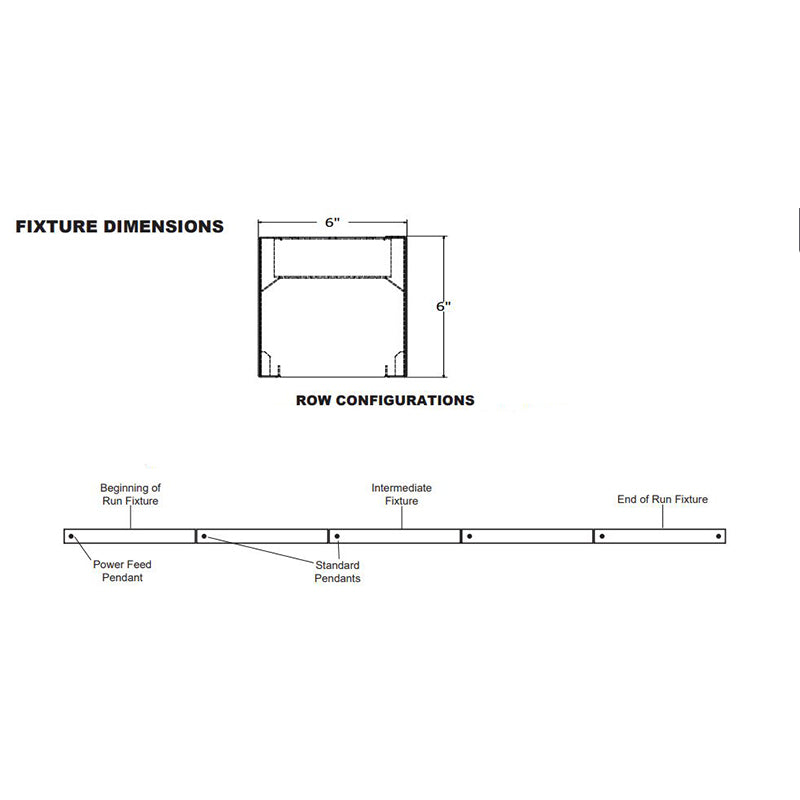

The fixture is constructed of a 6" wide heavy gauge steel body. The LDL6SMS is available in any run length withing 1' increments. Heavy duty housing crimped along sides for extra rigidity and straight alignment.

OPTICAL SYSTEM

High output LED's available in 3000K, 3500K, 4000K, and 5000K. CRI>82. Satin lens provides for a beautiful architectural design while maintaining optimal light output

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. 0-10V Dimming Standard. Long-life LED system rated for >120,000 life hours (L70@25°C). Metal gear tray for internal LED driver. Complies with Federal Energy Efficiency Standards.

MOUNTING

This fixture is designed to be surface mounted. Continuous run available.

LISTINGS

Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed.

WARRANTY

5-Year Limited Warranty.

Click for Spec Sheet
