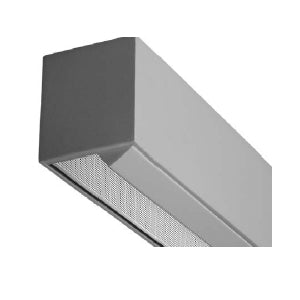

Advantage Environmental Lighting LDP4 4" Designer Recessed Perimeter LED
The LDP4 Series is an architecturally designed recessed perimeter LED luminaire. It is available for continuous run mounting that can be ordered to accommodate nearly any room design. Providing exceptional asymmetric distribution in combination with sleek aesthetics creates a beautiful and functional fixture, that sets a new standard for wall wash luminaires.
APPLICATIONS
The LDP4 Series is designed to be a high quality, energy efficient LED fixtures for us in hotel lobbies, corridors, common areas, museums, government facilities, schools, and professional business environments.
CONSTRUCTION

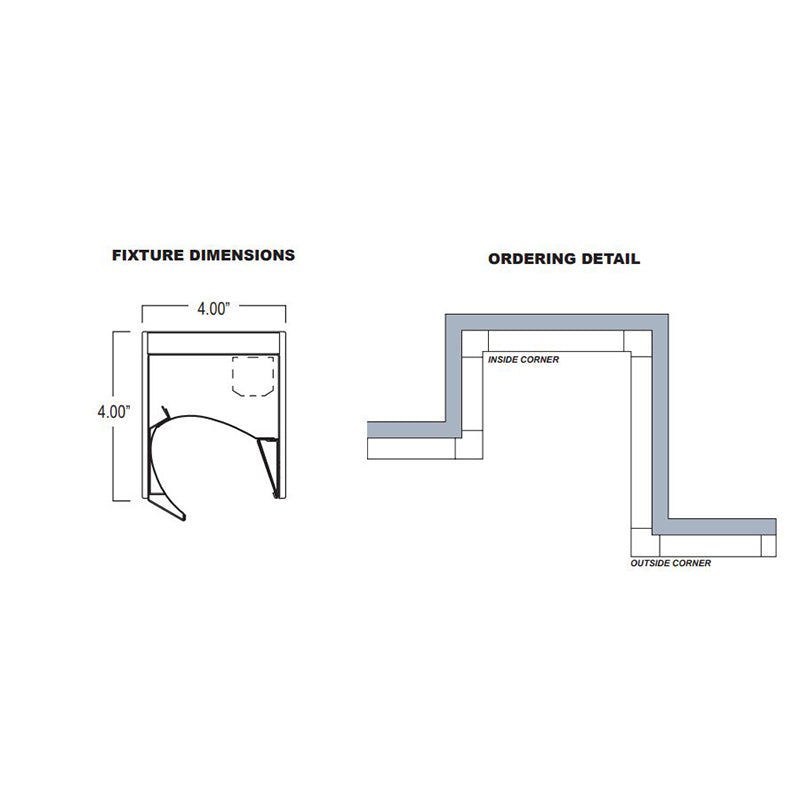

The fixture is constructed of a 4” wide heavy gauge aluminum body. This fixture is available in any run length within 1’ increments. Additional finishing sleeves are available to account for fixture gaps up to 6”. Two finishing sleeves may be used together to cover gaps up to 12”
OPTICAL SYSTEM
High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. The fixture is provided with a precision formed, specular aluminum Wall Wash reflector designed to direct the light into usable vertical illumination. The asymmetric reflector provides exceptional downward throw. The narrow aperture provides unobtrusive aesthetics.
ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.
MOUNTING
The fixture can be recess mounted in either a standard grid ceiling or it may be ordered with a flange kit to allow for mounting into sheetrock
LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. DLC Approved. Please refer to www.designlights.org for a complete listing of qualified models. ET Listed. CSA approved.
WARRANTY
5-Year Limited Warranty.
| LDP4L40SSMW2: 2' Recessed Wall Wash 6.6W 1012L 4000K | LDP4L40MSMW2: 2' Recessed Wall Wash 10.2W 1418L 4000K | LDP4L40HMSMW2: 2' Recessed Wall Wash 20.6W 2936L 4000K | LDP4L40SSMW4: 4' Recessed Wall Wash 13.2W 2024L 4000K | LDP4L40MSMW4: 4' Recessed Wall Wash 20.4W 2836L 4000K | LDP4L40HMSMW4: 4' Recessed Wall Wash 41.2W 5872L 4000K |
| LDP4L40SSMW8: 8' Recessed Wall Wash 26.4W 4048L 4000K | LDP4L40MSMW8: 8' Recessed Wall Wash 40.8W 5672L 4000K | LDP4L40HSSMW8: 8' Recessed Wall Wash 55.2W 7720L 4000K | LDP4L40HMSMW8: 8' Recessed Wall Wash 82.4W 11744L 4000K |
